HDX International
NDT SECURITY
SECURITY · EOD · FIELD INSPECTION

Get Eyes on the Target Before You Touch It.

PX3-S is a portable X-ray inspection system designed for EOD teams, suspicious package screening, unattended object inspection and field security operations.

An unattended bag. A sealed box. A vehicle panel that does not feel right. When the object is the question, touching it is not the first move.

PX3-S helps security teams inspect suspicious objects from a safe distance, providing digital X-ray images to support faster assessment and safer decision-making in the field.

Request a Quote Configure System
Get Eyes on the Target Before You Touch It.

  • 60m-1500m

    Wireless range

  • 100µm

    Min Pixel Size

  • 16-bit

    A/D Conversion

  • IP65

    Rugged Tablet
MISSION

Know what you're facing before you move to render it safe.

PX3-S gives EOD and security teams a safer way to inspect suspicious packages, sealed objects and high-risk items from a controlled distance. Control the scene. Control the distance. Get the X-ray information your team needs before making the next decision.
THE CHALLENGE

A field X-ray system should perform like a system, not a parts kit.

Many portable X-ray systems are built from components that weren't designed as a combined workflow. That may pass a demo. It's harder to trust when the link drops and you're under maximum pressure.

THE PARTS KIT PROBLEM

✕ Source from one supplier ✕ Panel from another ✕ Wireless bridge added later ✕ Awkward field software

THE PX3-S SOLUTION

PX3-S was built around the full imaging chain: generator, detector, control module and operator interface. One system. One workflow. One place to look when something needs attention.
FIELD WORKFLOW

Set up. Step back. Capture the image.

PX3-S is designed for the field sequence your team already knows. The interface is built for gloved hands, low patience and high stakes.
1

Place the detector

Position the detector panel near the suspect item or inspection target.
2

Position the source

Set the X-ray generator opposite the detector panel.
3

Confirm status

Check system status, connection and readiness on the HMI.
4

Step Back

Move to a safer standoff distance before image capture.
5

Capture

One tap — image on screen in seconds

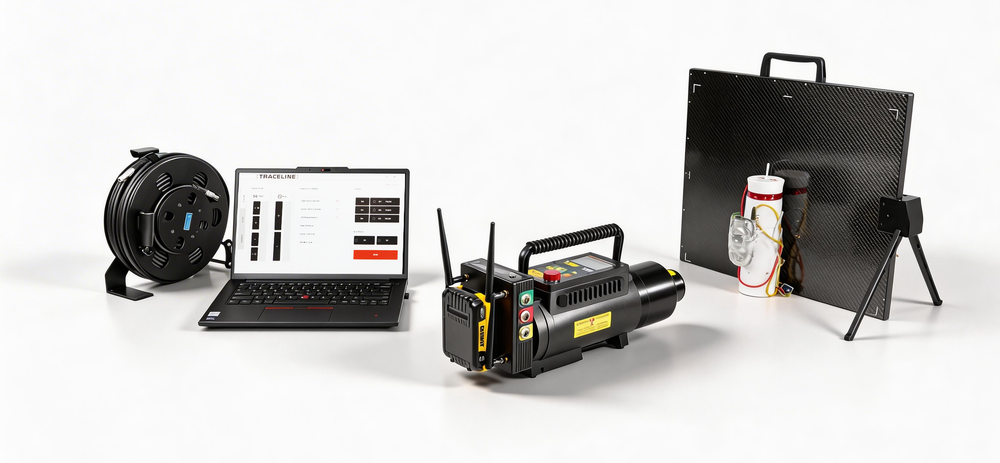

One Delivery. One Vendor. One Support Call.

  • X-ray generator

  • Digital detector panel

  • Control Module

  • 50m cable reel

  • Tablet or Laptop

  • Accessories

(All Golden X-ray source options are compatible)

Additional panel options available

  • Enhanced wireless module for longer transmission distance.
  • Supports 2.4GHz and 5GHz Wi-Fi

50m cable reel for wired operation.

MIL-STD rated, IP65 rugged tablet with high resolution, sunlight readable screen and PX3 Commander pre-installed

Security dongle for software authentication

DeWalt 20V batteries and charger

Wheeled Pelican case

CAPABILITIES

SAFE STAND-OFF

  • 60m wireless standoff

    PX3-S supports wireless operation up to 60 meters, giving operators more room to work from cover, hard corners or protected positions.

    For EOD and tactical teams, the detector can be positioned by robot while the operator remains at standoff. The image comes back to the high resolution, sunlight readable HMI.

  • 50m hardwired option

    PX3-S also supports a 50-meter hardwired connection. Some sites are crowded. Some environments are noisy. Some missions call for cable. PX3-S gives your team both options.

Built for security work that can't wait for a lab.

  • Inspect bags, boxes, mail, parcels and containers without opening them first.

    Suspicious Packages

  • Support threat assessment, diagnostics and render-safe planning from standoff.

    EOD & Bomb Squad

  • Check panels, compartments and concealed areas for hidden items.

    Vehicle & Cargo

  • Inspect suspicious objects, packages and concealed materials with non-intrusive imaging.

    Corrections & Contraband

  • Portable inspection tool for high-risk items and controlled access points.

    Event & Facility Security

  • Screen packages, containers and concealed spaces without destructive inspection.

    Fire & Arson Investigation
SPECIFICATIONS

PX3-S Portable X-Ray System at a Glance

X-Ray Source
Golden Engineering XR150 / XR200 / XRS3 / XRS4
Panel Options
14" or 17", 139µm or 100µm pixel pitch
Resolution
3.5 to 5 LP/mm
Panel Rating
IP54, 4–4.5 kg, 4.5–6.5 hr battery
Control Module
Proprietary, dual-band WiFi, 200m wireless range
HMI
MIL-STD rated, IP65 rugged tablet/laptop with sunlight readable screen, Windows 11
Software
PX3 Commander, dongle-authenticated
Operating Temp
0–50°C
SYSTEM ARCHITECTURE

One system. Not three products in a case.

The Control Module connects the source, detector and operator interface into one coordinated workflow. This is the difference between equipment that travels and equipment that works when it gets there.
Automatic hardware detection on startup
Dual-band WiFi: 2.4 GHz and 5.8 GHz
Wireless Range: 60 m standard; up to 1500 m optional
50m cable reel for hardwired operation
DeWalt 20V battery platform
Complete kit in wheeled Pelican case
CERTIFICATION NOTICE

CE, FCC and RoHS Related Certifications

We are pleased to announce that PX3 has obtained CE, FCC and RoHS related certifications based on applicable testing standards.

CE related certification
FCC related certification
RoHS related certification

The Situation Is Complex. The System Shouldn’t Be.

PX3-S gives EOD and security teams a clear view of system status across the X-ray generator, detector panel and HMI. Fewer unknowns. Faster setup. Better control from a safer standoff distance.

PX3-S BROCHURE PX3-N BROCHURE
