Railway catenary clamp inspection can be challenging because the conductor position and internal condition are hidden after assembly. Visual inspection alone cannot confirm whether the conductor has been inserted correctly or whether damage exists inside the clamp.
To evaluate portable digital radiography for this application, the TraceLine™ PX3-N was tested with prepared copper conductor and clamp specimens at a high-speed railway organization in China. The test was conducted under controlled conditions using representative samples, rather than on an energized railway line.
Test Setup

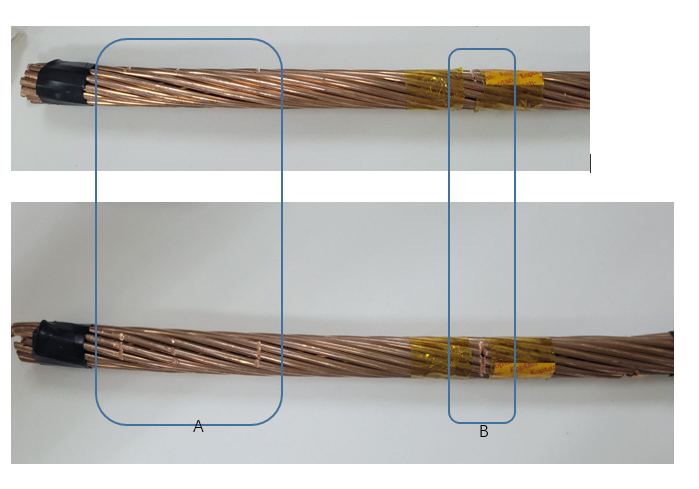

The multi-strand copper conductor was prepared with simulated damage of different depths:
- Area A: Three grooves, each approximately 1 mm deep
- Area B: One groove approximately 3 mm deep
The conductor was inspected separately and then installed inside the copper clamp.
The PX3-N was configured with an XRS3 270 kV pulsed X-ray source and a digital detector panel. Images were captured from multiple angles to evaluate how the copper clamp and overlapping conductor strands affected defect visibility.
What Did the DR Images Reveal?
The digital radiographs clearly showed the position and internal outline of the conductor inside the assembled clamp.
The 3 mm groove in Area B produced a clear indication and remained visible through the copper clamp. This demonstrates the potential of portable digital radiography for verifying conductor insertion and identifying relatively large internal abnormalities.
The three 1 mm grooves in Area A were visible when the conductor was inspected separately. However, after the conductor was installed inside the clamp, the additional copper thickness and overlapping structures prevented the grooves from being reliably distinguished.
All DR images shown in this application were captured using the XRS3.
Application Value and Detection Limits
This evaluation shows that the PX3-N may support:
- Post-assembly verification of conductor position
- Targeted inspection of critical catenary clamps
- Identification of relatively large internal defects
- Failure analysis and digital inspection documentation
It also establishes an important detection boundary. Very small defects may require inspection before assembly, optimized imaging geometry or complementary NDT methods.
The results demonstrate both the practical value and the limitations of portable digital radiography for railway catenary clamp inspection.
Radiographic inspection must be performed by qualified personnel in accordance with applicable radiation safety regulations and site procedures.
