<25 lbs
Complete package weight
Pelican™ 1535 Air
Maximum carry-on size case
5 Core Tools
MESA, ANDRE, ORION, CMA & multimeter
Deployment-ready
Portable tactical TSCM kit
Product Overview
Carry-on Tactical TSCM Equipment Package
The TTK – Tactical TSCM Kit is a carry-on, deployment-ready equipment package designed for frequent travelers who need a portable sweep kit with broad counter-surveillance capability.
01
Portable Sweep Kit
Designed as a compact TSCM kit for field deployment, travel, and rapid inspection tasks.
02
Multiple Detection Methods
Combines RF analysis, near-field detection, NLJD hidden electronics detection, wired surveillance detection, and multimeter testing.
03
Carry-on Case Format
Packaged in a Pelican™ 1535 Air maximum carry-on size case with custom REI foam inserts.
04
Core REI Instruments
Includes proven REI instruments: MESA® 2.0, ANDRE®, ORION® 2.4 HX, and CMA-100.
05
Travel-focused Design
The case includes quiet rolling stainless-steel bearing wheels, retractable handle, accessory pockets, and auto purge valve.
06
Export Configuration Note
Thermal Imager is U.S. only and is not included in export kits according to the published product information.

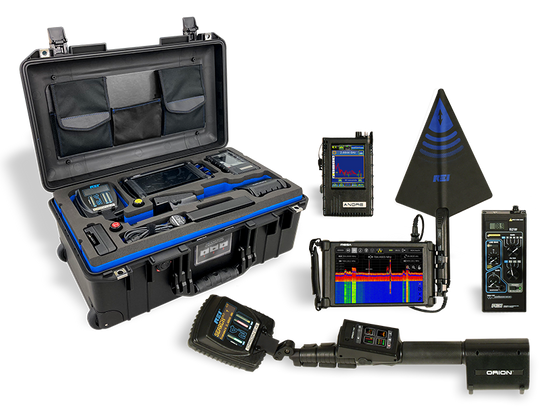

TTK – Tactical TSCM Kit open case configuration
Included Core Equipment
Deployment-ready TSCM Tool Set
The TTK combines compact REI inspection equipment into a single travel-ready package for tactical counter-surveillance operations.
- MESA® 2.0 handheld spectrum analyzer for portable RF analysis
- ANDRE® broadband detector for near-field detection and location of RF transmitters
- ORION® 2.4 HX non-linear junction detector for hidden electronics
- CMA-100 countermeasures amplifier for detecting wired surveillance devices
- Multimeter for general electrical testing
Included Equipment
Core Instruments in the Tactical TSCM Kit
The TTK brings together multiple compact instruments for portable RF detection, near-field inspection, hidden electronics detection, and wired surveillance checks.
MESA® 2.0
Handheld spectrum analyzer for portable RF analysis up to 6 GHz, or 12 GHz with Downconverter Antenna.
ANDRE®
Broadband detector for near-field detection and location of RF transmitters up to 12 GHz with Downconverting Antenna.
ORION® 2.4 HX
Non-linear junction detector for finding hidden electronics, active or inactive.
CMA-100
Countermeasures amplifier for detecting wired surveillance devices.
Multimeter
Included for general inspection and electrical testing tasks.
Equipment Combination
Multi-layer Detection Capability
The TTK is designed to provide a compact combination of tools for field inspection, supporting several complementary detection approaches.
- RF spectrum analysis and wireless signal detection
- Near-field transmitter detection and location
- Hidden electronics detection using NLJD technology
- Wired surveillance device detection
- Support tools for tactical inspection work

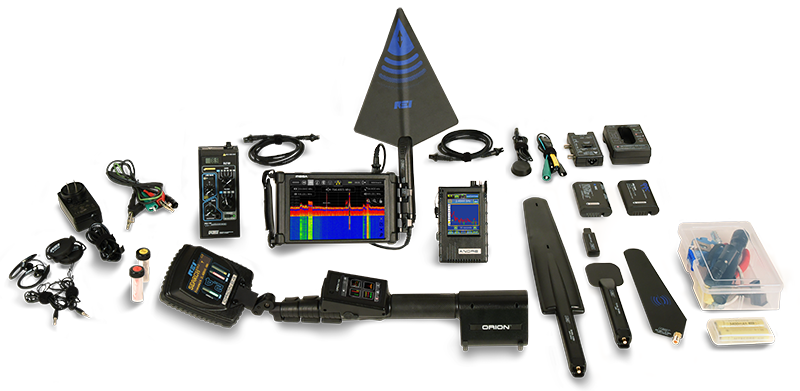

TTK equipment family and core instruments
Case & Packing
Pelican™ 1535 Air Carry-on Deployment Case
The REI TTK is packaged in a durable Pelican™ 1535 Air maximum carry-on size case with custom REI foam product insert layers and travel-focused features.
TTK Pelican™ 1535 Air case configuration
Case Features
Designed for Travel and Deployment
- Two custom REI foam product insert layers
- Quiet rolling stainless-steel bearing wheels
- Retractable extension handle
- Business card holder
- Accessory pockets in the lid
- Auto purge valve for pressure balancing
- Super-light proprietary HPX2™ Polymer
Packing List
Organized Kit Layout
The kit is organized for compact storage and rapid deployment. Exact package content may vary depending on final configuration, export rules, and supply conditions.
- Dedicated compartments for compact instruments
- Accessory storage for cables, probes, chargers, and small tools
- Foam insert layout designed for field transportation
- Thermal Imager is U.S. only and not included in export kits

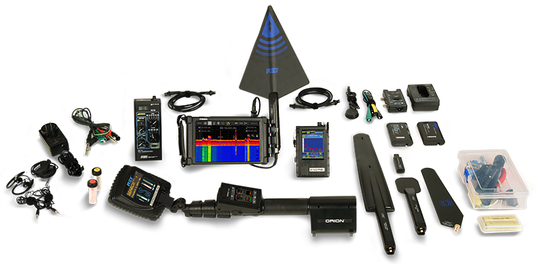

TTK packing list reference
Product Video
TTK Tactical TSCM Kit Product Video
Watch the product video for a visual overview of the TTK package and its portable deployment format.
Applications
Typical Application Areas
Application areas are based on the kit configuration and published TTK product information.
- Technical Surveillance Countermeasures (TSCM)
- Portable sweep kit for frequent travel
- RF signal detection and analysis
- Near-field transmitter detection
- Hidden electronics detection
- Wired surveillance device detection
- Executive protection support
- Intelligence protection
- Counter-surveillance inspections
- Field-deployable security inspection work
Technical Specifications
TTK Tactical TSCM Kit Specifications
Specifications below are based on published TTK product information.
| Category | Specification |
|---|---|
| Product Type | Carry-on, deployment-ready Tactical TSCM equipment package |
| Complete Package Weight | <25 lbs / 11.3 kg |
| Case Type | Pelican™ 1535 Air maximum carry-on size case |
| Case Exterior Dimensions | 21.96 × 13.97 × 8.98 in / 55.8 × 35.5 × 22.8 cm |
| Case Interior Dimensions | 20.39 × 11.20 × 7.21 in / 51.8 × 28.4 × 18.3 cm |
| Case Empty Weight | 8.69 lbs / 3.9 kg |
| Padlock Hole Diameter | 5/16 in / 8 mm |
| Wheels | 2 wheels |
| Core Instruments | MESA® 2.0, ANDRE®, ORION® 2.4 HX, CMA-100, Multimeter |
| Thermal Imager | U.S. only; not included in export kits |
| MESA® 2.0 Summary | 10 kHz to 6 GHz spectrum analyzer; extends to 12 GHz with Downconverter Antenna; >200 GHz/second sweep speed; SmartBars™, Mobile Bands, WiFi and Bluetooth modes |
| ANDRE® Summary | Broadband detector for near-field detection and location of RF transmitters up to 12 GHz with Downconverting Antenna; histogram display; signal information and band details |
| ORION® 2.4 HX Summary | NLJD for hidden electronics; 2.404 GHz–2.472 GHz frequency band; 3.3 W EIRP or G model 6.6 W EIRP; digitally correlated 2nd and 3rd harmonic response |
| CMA-100 Summary | Countermeasures amplifier for detecting wired surveillance devices; 115 dB gain in manual mode; built-in AC/DC voltmeter |
Note: Check with your airline for exact measurement and weight requirements. Accessories and package content may vary by market, export configuration, and supply conditions.
