Typical Applications
Emergency response
Hostage rescue
Target localization
Emergency response
Hostage rescue
Target localization
Feature Highlighted
● 3D Through-Wall Imaging
Visualizes human presence behind solid structures in real time. Supports static and dynamic target analysis.
● Operational Versatility
Functions through common building materials including concrete, brick, and drywall.

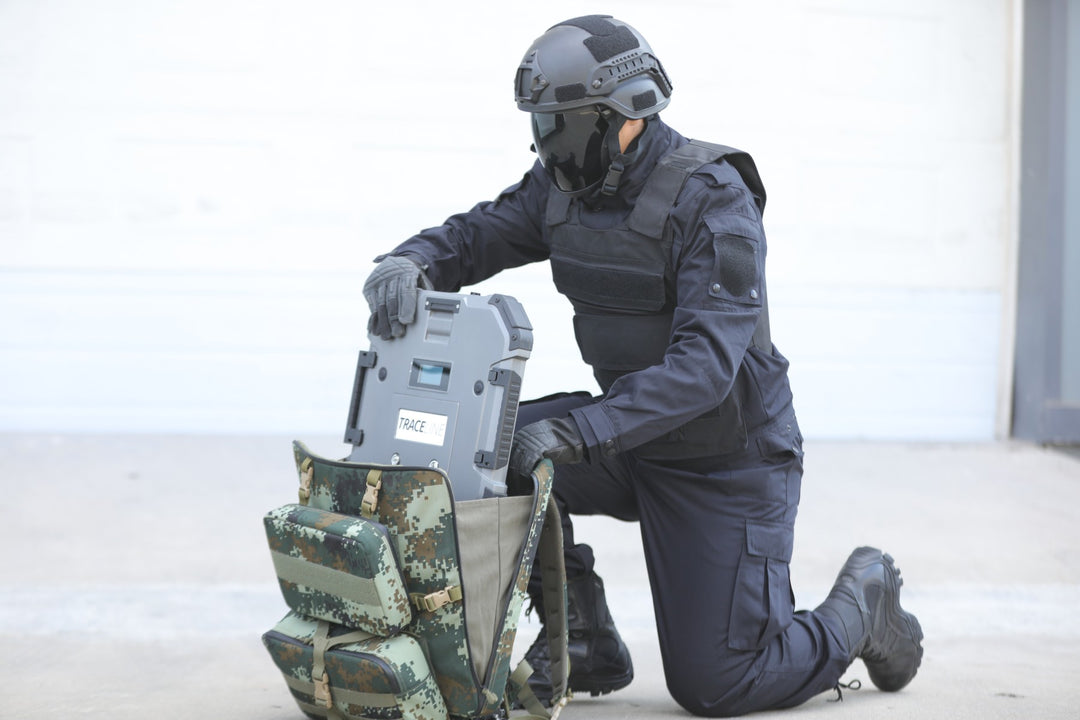

● Rapid Deployment
Man-portable system with sub-3-minute setup time. Suitable for mobile teams and fixed-site surveillance.

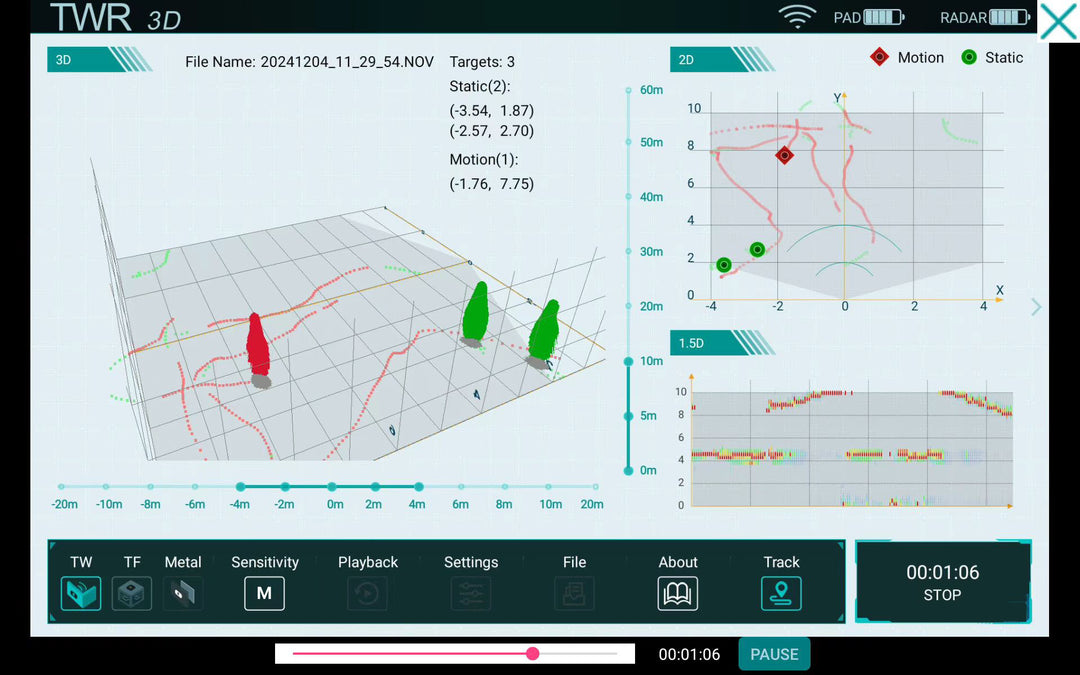

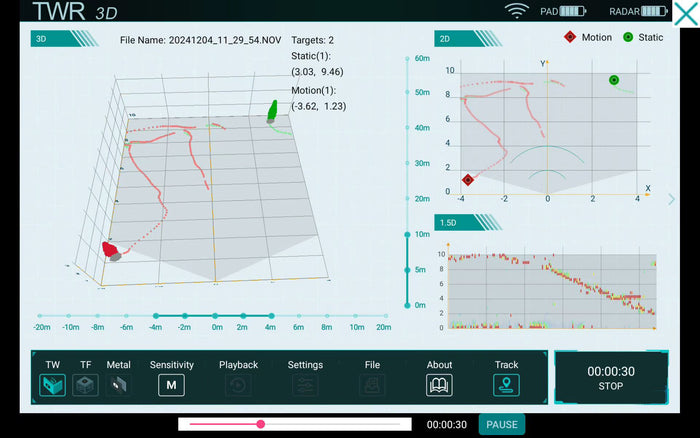

● Real-Time Target Mapping
2D/3D radar visualization with coordinate data and target differentiation.
Have Questions?
We Have Answers.
What is the principle of Through-Wall Radar?
It uses ultra-wideband radar signals to penetrate non-metallic barriers like walls. When signals reflect off human targets, even subtle movements like breathing or motion cause Doppler shifts. The system analyzes these echoes to detect position, number, and posture of people behind walls.
Can the TWR3000 3D Through-Wall Radar see through walls?
Yes, absolutely. It is designed with a MIMO ultra-wideband radar architecture, enabling it to penetrate non-metallic, low-moisture materials such as brick walls, stone panels, doors, and concrete structures.
Do you have any certifications?
Yes, we can provide CE, RoHS, ISO, Ex, UL, and other relevant certifications.
All products are tested to meet international safety and quality standards.
Product Specifications
| Detection Mode | Real-time positioning and 3D imaging, 2-D Positioning, Multi Moving and Static Target detection |
| Multi-target Detection | ≥5 |
| Penetrating Materials | Concrete wall, Mixed Concrete with a brick wall, Wood wall, and other concrete media |
| Penetrating Wall Thickness | 240-370mm mixed concrete and brick |
| Detection Distance | Static target≥15m, Moving target≥ 20m |
| Distance Detection Range | 0-10m/0-20m/20-30m with detection scope ±3m/±4m/ ±5m |
| Detection Angle | 120° horizontal and 90° vertical |
| Battery Run time | ≥4h |
| Size(WxDxH) | 520x500x110mm |
| Working Ambient Temperature | -20℃-60℃ |
| Dropping off distance testing | 500mm |
