SFC 56 Portable Signature and Fingerprint Imaging Device

$0.00

Tax included. Shipping calculated at checkout.

Quantity

SFC 56 is crafted to capture handwriting signatures, fingerprints, stamps, and other forms of evidence in stunning detail while offering on-site post-imaging processing and analyzing capabilities such as comparison, measurement, and annotation.

Easy to Use

One button press to capture image.

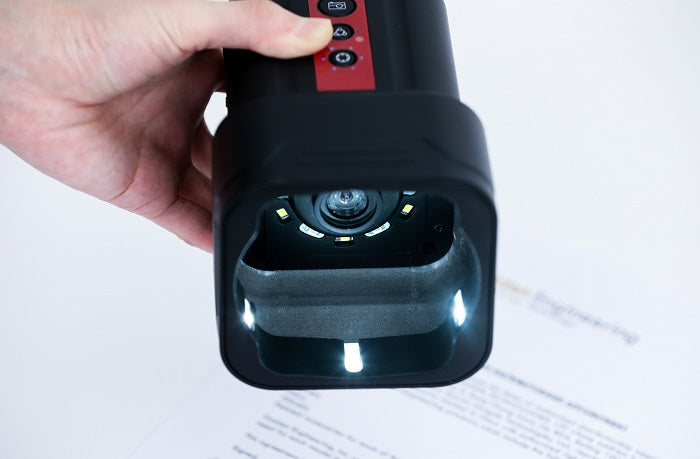

Top Down Lighting

Top ring white and blue LED illumination assisting capturing sharp images

Low Angle Lighting

Low angle ring LED lighting for photometric imaging feature

Sample Images Captured by SFC56

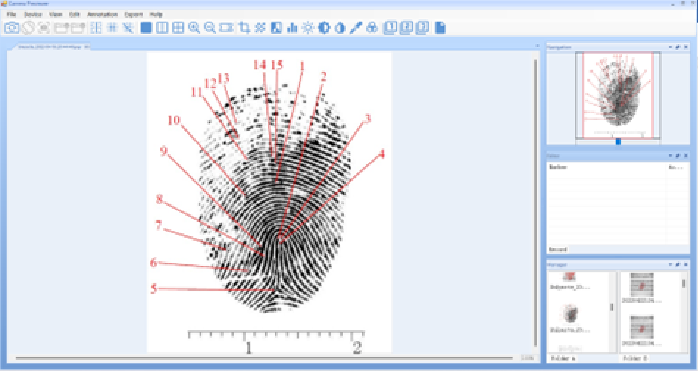

files/SFC56_fingperint_annotation.png

Measurements and Annotations

Annotate, measure and label right within the SFC56 software. Powerful measurement tools make analysis and report writing a breeze.

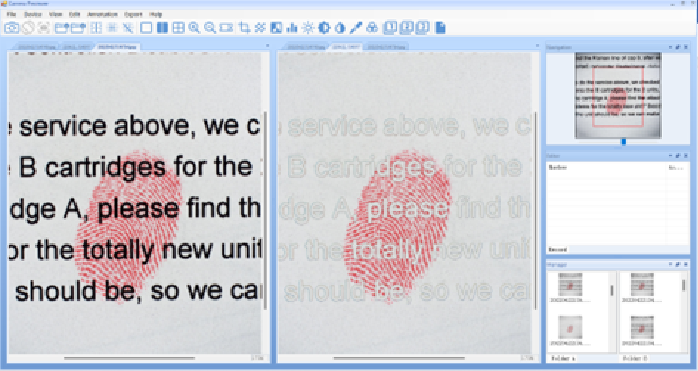

files/SFC56_removing_background.png

Background Removal

Tailored made software can remove backgrounds in one click, streamlining the processing and analysis process.

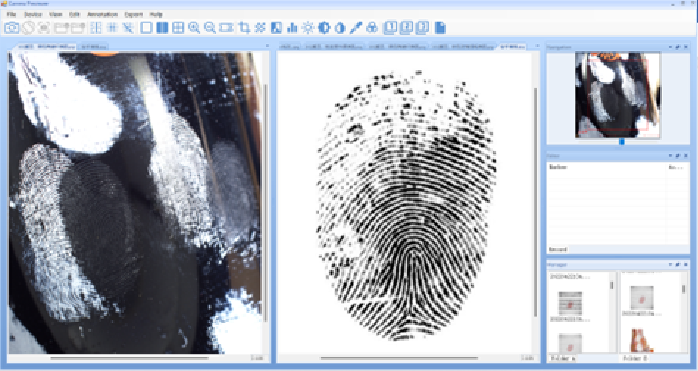

files/SFC56_iamge_comparison.png

Powerful Image Comparison

The software that powers SFC56 has a several ways to compare live images to previously saved references. Since SFC56 maintains consistent magnification and aspect ratio, comparisons are easy and accurate.

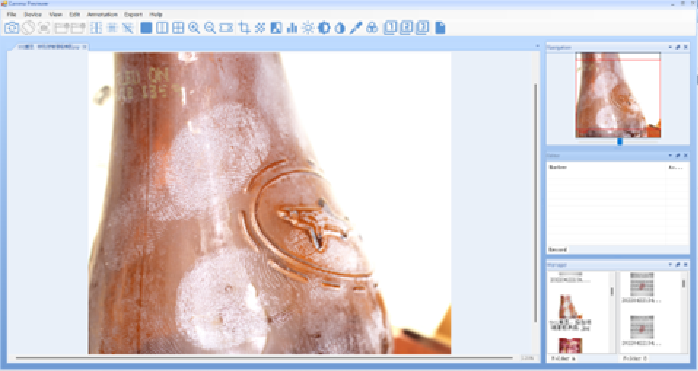

files/SFC56_capture_fingeprint.png

Imaging Fingerprints

The SFC56 is able to capture fingerprints from a wide variety of surfaces. Seen here is an image taken with SFC56 on the curved surface of a bottle.

Live Image resolution	10M pixels
Captured Image resolution	1400dpi
Field of View	56x56mm
Captured image format	TIFF、JPEG、JPEG2000
Image Transfer	Wi-Fi with Mobile phone or USB 3.0 port with Computer
Light Source	2 layers White light source and 450nm light source
Power Supply	2 Cell 18650 batteries, 3.7v, 3400mAh
Dimension(WxDxH)	90x90x130mm
Weight	390g

Product Brochure Download

Know someone who would be intersted in this product? Download the product brochure and share it with them or share this page on your socials by following the links below!

Download Product Brochure

TRACETECH™ SFC 56 Portable Signature and Fingerprint Imaging Device
