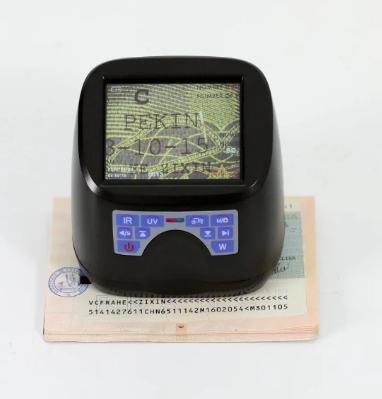

PAM2 Portable Digital Magnifier
The PAM2 Portable Authenticity Magnifier is a high-precision, multi-light forensic inspection device designed for the authentication of documents and items with embedded security features. Equipped with integrated multi-spectral lighting and a high-resolution 5MP camera, PAM2 enables rapid, detailed verification of passports, ID cards, banknotes, credit cards, and other high-value security documents—making it ideal for law enforcement, border control, customs, banking, and forensic laboratories.
Couldn't load pickup availability
The PAM2 Portable Digital Magnifier is a multi-light forensic inspection device designed for the authentication of documents and items with embedded security features.
Equipped with integrated lighting and high-resolution imaging, PAM2 supports the verification of passports, ID cards, banknotes, credit cards, currencies, and other security documents.
Designed for Security Feature Verification
Designed for questioned document examination and security feature examination.
Supports one-button activation of the examination function for efficient inspection.
Integrated light sources support different inspection requirements for security documents.

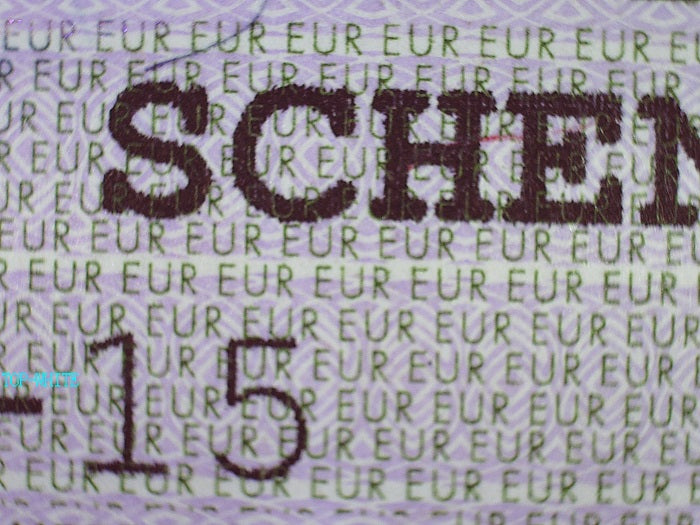

Supports inspection of micro-print text, UV security features, document alterations, intaglio and embossed print.
Supports IR absorption security feature inspection and anti-Stokes security feature examination.
Supports projecting images to an HD monitor for larger-screen examination.
Typical Applications
PAM2 is suitable for document and currency verification in inspection, checkpoint, banking, customs, and forensic document examination environments.
Inspection Capabilities
The device supports multiple security feature checks through its built-in light sources and high-resolution imaging system.
PAM2 Demonstration Video
Watch the video to see PAM2 in use for document and security feature inspection.

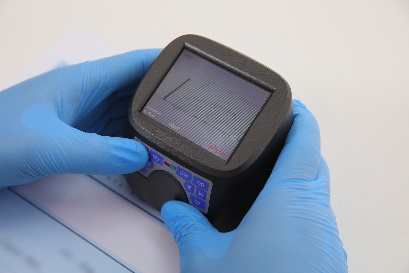

Direct Viewing and Large-Screen Examination

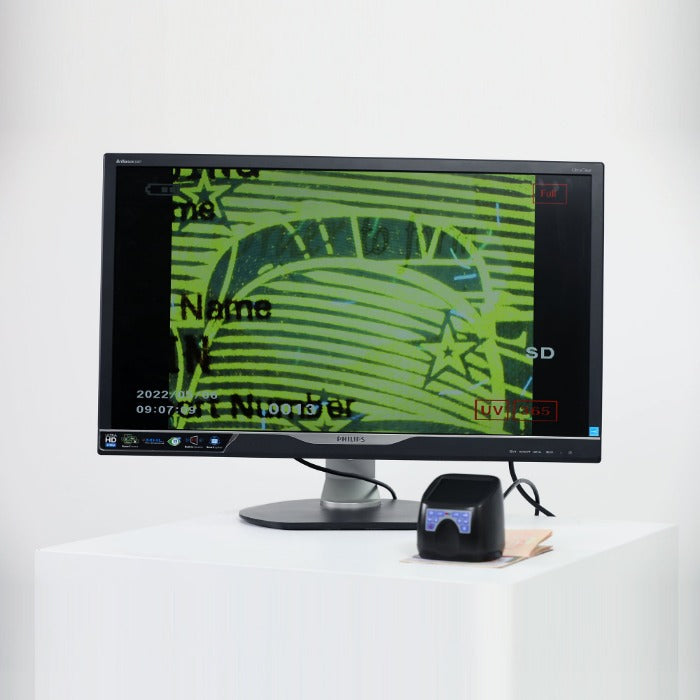

PAM2 includes a built-in display for direct viewing and supports projecting images to an HD monitor when a larger screen is required.
Multi-Light Configuration
| White | Incident light |
| White Side Light | 3 selectable ring illumination directions |
| UVC | 254 nm |

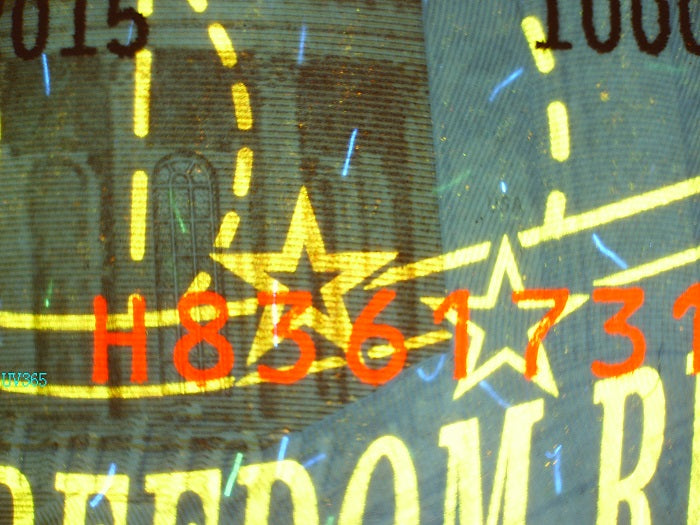

| UVA | 365 nm |

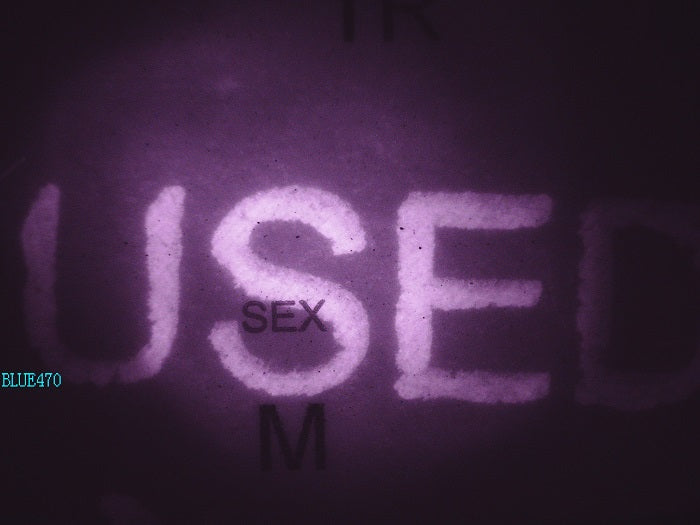

| Blue | 470 nm |

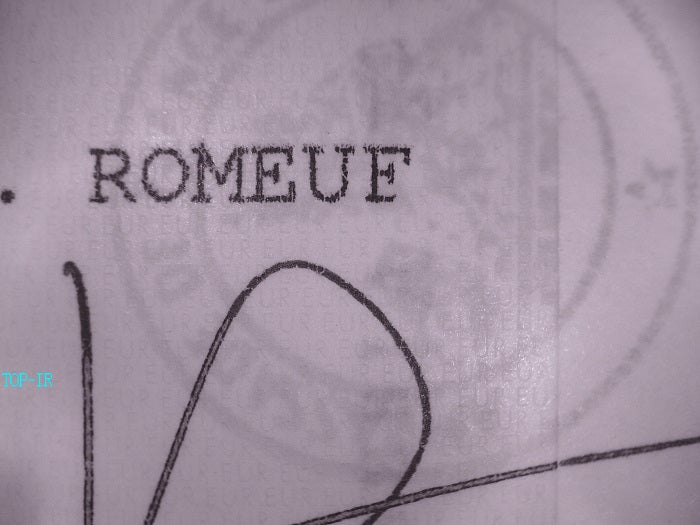

| Incident IR | 850 nm |
| Side IR | 850 nm and 980 nm |
| Anti-Stokes Laser | 980 nm laser |
Technical Data
| Camera | Integrated 5MP CMOS camera |
| Display | 3-inch HD TFT-LCD screen |
| Zoom | 1×, 15×, and 30× magnification cycles |
| Field of View | 21 × 15 mm to 10 × 7 mm |
| Battery Run Time | Up to 2 hours |
| Connectivity | HDMI output; USB 2.0 for image transfer |
| Storage Capacity | 4 GB |
| Weight | 200 g |
Frequently Asked Questions
What can PAM2 inspect?
It can examine passports, ID cards, credit cards, banknotes, currencies, and other items with embedded security features.
What types of features can it check?
It supports inspection of micro-print text, UV security features, document alterations, intaglio and embossed print, IR absorption security features, and anti-Stokes security features.
Can it connect to a monitor?
Yes. PAM2 supports projecting images to an HD monitor.
Can images be transferred?
Yes. It supports USB 2.0 for image transfer.
