SF10 Fingerprint Recover integrates multispectral lighting and imaging technology in one compact system for fingerprint search and photography.
It is designed to detect and capture latent fingerprints, powder-treated fingerprints, and gelatin lifter-collected fingerprints at crime scenes or in laboratory photography workflows.
The system supports mobile phone and SLR camera photography, helping users work with different fingerprint photography requirements using the same device.
Key Features
Multispectral Imaging
White, UV 365 nm, blue 450 nm, green 530 nm, and IR 830 nm light sources support different fingerprint photography tasks.
Search and Photography
The compact system supports fingerprint search and photography in crime scene and laboratory workflows.
Mobile Phone / SLR Support
Supports mobile phone and SLR camera photography. Mobile phone is the standard photography configuration.
Non-Destructive for DNA
Designed to support fingerprint photography while remaining non-destructive for DNA.
Photography Setup
SF10 supports vertical, dark field, oblique, fluorescence exciting, and IR photography modes.

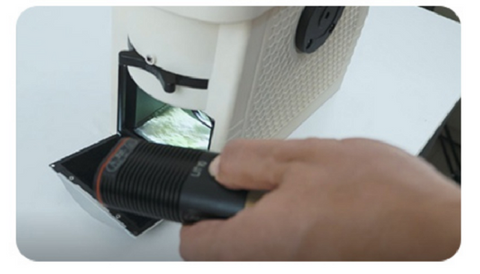

External lighting can be used through the side window to excite strong fluorescence, and the side window angle can be adjusted from 0° to 80°.
- Button selection program
- Vertical photography
- Dark field photography
- Oblique photography
- Fluorescence exciting photography
- IR photography, with IR-sensitive camera or mobile phone required
- External lighting side window: 65 × 84 mm
- Side window angle adjustment: 0°–80°
Application Scenes
Object Surface Photography
Supports fingerprint photography on object surfaces during investigation.
Fingerprint Collection
Can be used with fingerprint collection and photography workflows.
Fingerprint Search
Supports fingerprint search and capture under selected lighting conditions.
Laboratory Photography
Suitable for laboratory fingerprint photography workflows.
Optional Setup

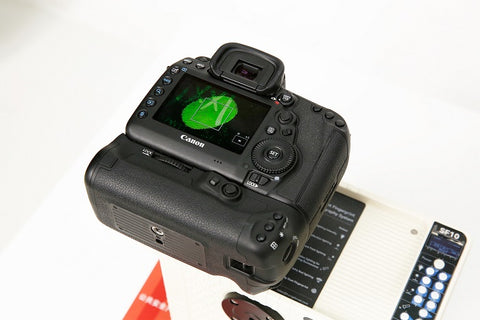

SLR Camera Configuration
Supports SLR camera photography with a 35–200 mm lens range.
Stable Photography Setup
Supports a stable setup for fingerprint photography when used with suitable photography accessories.
Capture Results

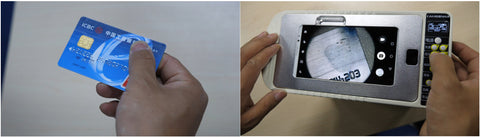

Credit Card
Capture fingerprint left on a credit card surface.

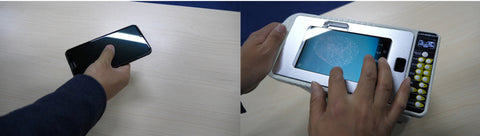

Cellphone
Capture fingerprint left on a cellphone surface.

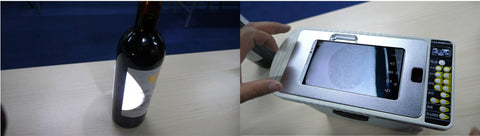

Wine Bottle
Capture fingerprint left on a wine bottle surface.
Marble
Capture fingerprint left on a marble surface.

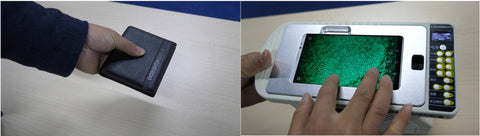

Wallet
Capture fluorescence fingerprint left on a wallet surface.

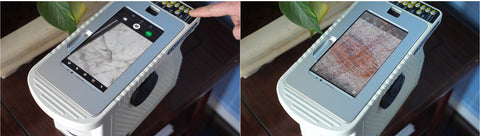

Dust Fingerprint
Capture dust fingerprint for forensic photography and review.
Technical Specifications
| System Type | Multispectral lighting and imaging system for fingerprint search and photography |
|---|---|
| Applications | Crime scene investigation; laboratory photography |
| Light Sources | White, UV 365 nm, blue 450 nm, green 530 nm, and IR 830 nm |
| Operation | Button selection program |
| Photography Modes | Vertical, dark field, oblique, fluorescence exciting, and IR photography |
| IR Photography | IR-sensitive camera or mobile phone required |
| External Lighting | Open side window, up and down angle 0°–80°, window size 65 × 84 mm |
| External Lighting Use | External lighting can be used to excite strong fluorescence, such as laser |
| SLR Camera Lens | 35–200 mm |
| Camera Longpass Slot-In Filters | U365, B450, G530, and IR830 |
| Photography Support | Mobile phone and SLR camera photography |
| Standard Photography Configuration | Mobile phone |
| Size | 270 × 125 × 185 mm |
| Weight | 6.16 lb |
