What Does a 5.8GHz Wi-Fi Signal Look Like on a Spectrum Analyzer?

When you stream videos, join online meetings, or transfer large files, have you ever wondered how all that data actually travels through the air?

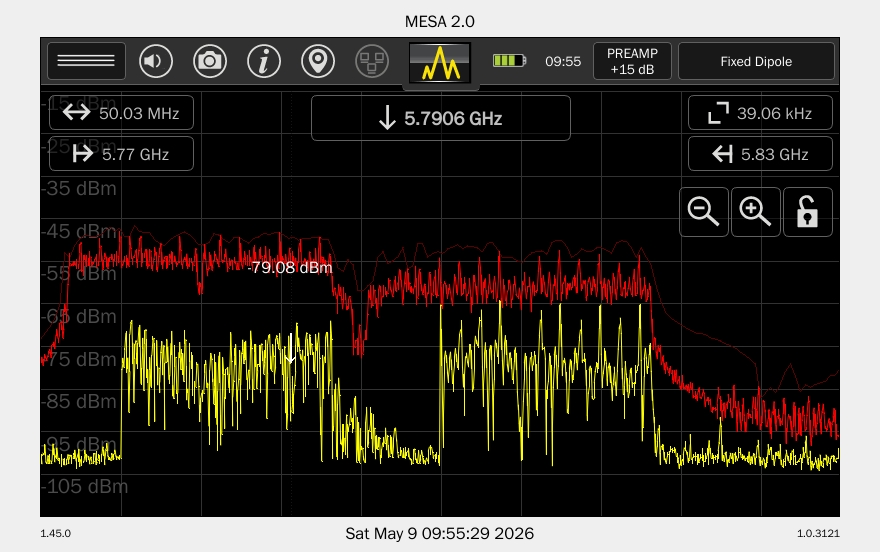

Recently, we used the REI MESA 2.0 spectrum analyzer to capture a typical 5.8GHz Wi-Fi signal. In the spectrum view, the signal is centered at around 5.7906GHz and occupies a relatively wide bandwidth, forming a clear “flat-top” shape.

This is a typical spectrum signature of modern high-speed Wi-Fi communication.

Unlike traditional FM radio signals, which often appear as a narrow peak, Wi-Fi signals use wider frequency resources to support high-speed data transmission. The broad and flat energy area shown on the spectrum may carry web browsing, video streaming, file transfers, IoT device communication, and other network traffic.

Why do more devices use the 5.8GHz band?

Compared with the 2.4GHz band, the 5.8GHz band offers more available channels and helps reduce interference between wireless devices.

In high-density wireless environments such as offices, airports, hotels, and conference rooms, 5.8GHz Wi-Fi usually provides faster transmission speeds and a more stable connection.

That is why many Wi-Fi 5 and Wi-Fi 6 devices prefer this band for high-speed communication.

Why does this matter for TSCM?

For TSCM specialists, the 5GHz band is an important area to monitor.

Many wireless cameras, network-based listening devices, and hidden IP transmission devices may use Wi-Fi networks to send data. These devices may not appear as traditional analog transmitters. Instead, they can blend into the normal wireless network environment.

This means detection teams need to understand not only where signals are present, but also whether they are normal or suspicious.

They may need to ask:

Which signals belong to normal office networks?
Which ones come from visitor Wi-Fi or IoT devices?
Which signals show unusual bandwidth, signal strength, or transmission behavior?

With professional spectrum analysis tools such as the REI MESA 2.0, TSCM teams can quickly observe signal distribution across the wireless spectrum, identify suspicious activity, and support further location, inspection, and investigation work.

Invisible networks leave visible traces

From a spectrum perspective, Wi-Fi is like a busy highway in the air.

Every day, huge amounts of data move through this invisible highway. A spectrum analyzer works like an “air traffic radar,” helping engineers and TSCM professionals see wireless activity that cannot be observed by the human eye.

Wireless networks are invisible, but their energy distribution, bandwidth usage, and transmission behavior can be clearly seen on a spectrum analyzer.

That is the value of spectrum analysis in wireless security inspection, TSCM detection, and complex RF environment analysis.
