Application of Portable X-Ray Imaging in Fire Investigation

Looking Beyond Surface Damage to Examine Internal Structures

In fire investigation, damaged items are often exposed to extreme heat, resulting in severe burning, melting, or deformation. In many cases, the external appearance alone is not enough to determine the internal condition of the object or identify critical structural details.

Fire-damaged appearance of the object before X-ray inspection.

Portable X-ray imaging provides investigators with a non-destructive method for examining the interior of fire-damaged evidence. Without disassembling or further disturbing the object, investigators can obtain a clearer view of internal structures that may remain important for technical analysis.

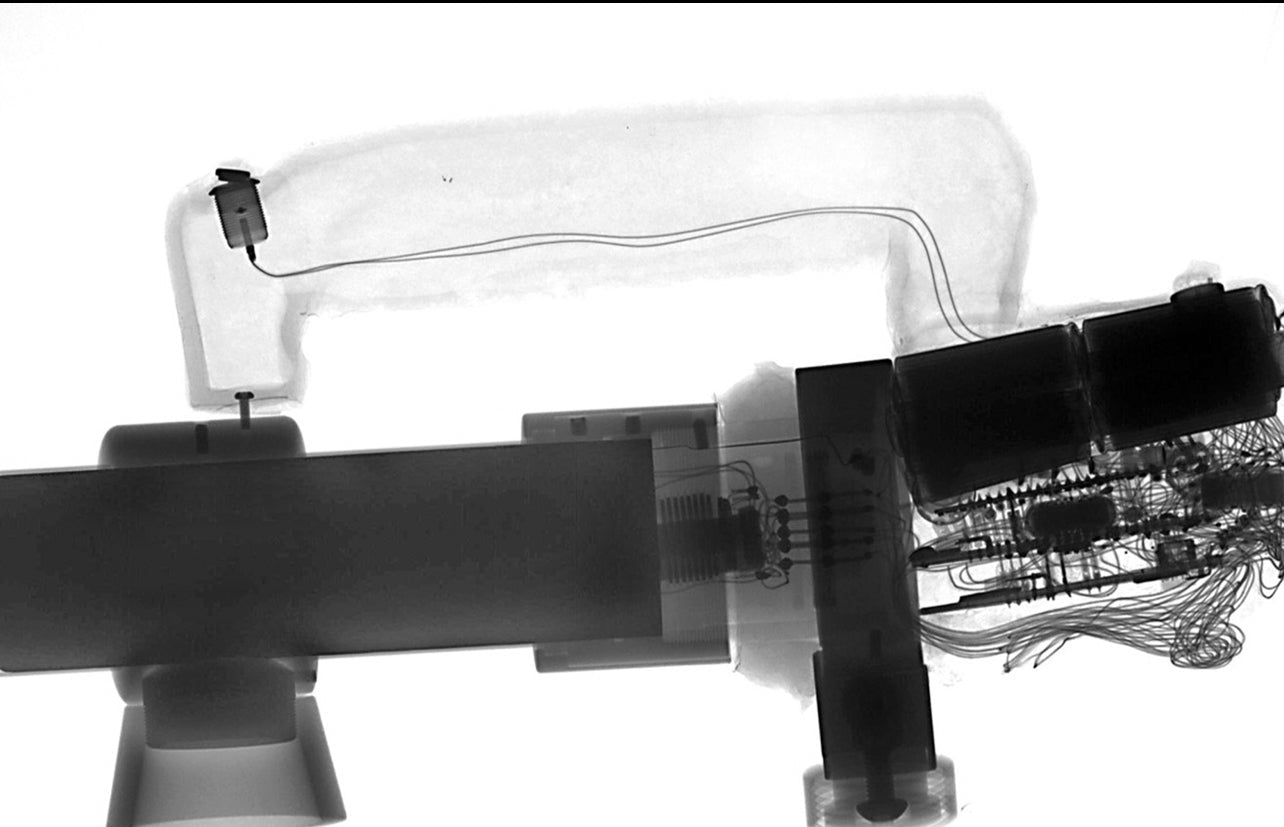

X-ray image revealing internal wiring, components, and structural features.

Through X-ray inspection, hidden details such as wiring paths, internal components, and structural changes can become visible, even when the exterior has been heavily damaged by fire. This helps investigators better understand the condition of the item and supports further evidence examination.

A broader X-ray view supporting assessment of internal layout and damage condition.

The TRACELINE™ PX3-S Portable X-Ray System is designed for rapid field deployment and supports clear internal imaging in demanding environments. With portable configuration, battery-powered operation, and both wired and wireless transmission options, PX3 can assist investigators in conducting more efficient on-site inspection and analysis of fire-damaged items.
