TRACELINE™ Under Vehicle Inspection Camera

Tax included. Shipping calculated at checkout.

Quantity

Easily inspect dark, dangerous, or hard-to-reach areas—under vehicles, inside cavities, and narrow pipes—with TRACELINE™ Under Vehicle Inspection Camera. This lightweight, portable system combines a high-resolution camera, powerful LED lighting, and a 1.5m extendable pole. Designed for security checks, rescue operations, and precision inspection, it helps you see clearly where others can't.

Fast. Clear. Reliable.

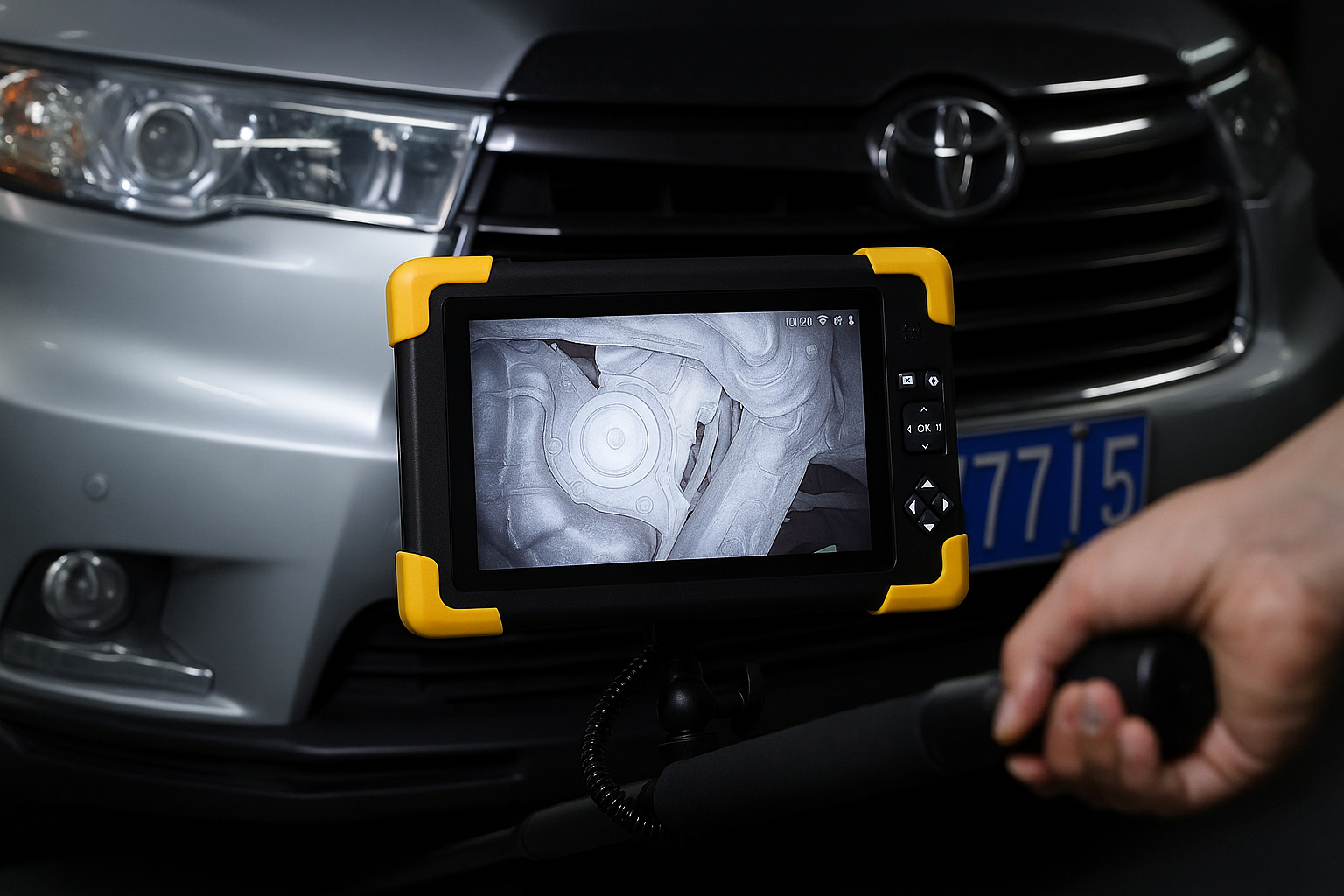

10" HD screen with high-resolution camera probe – quickly detect hidden threats under any vehicle. Trusted by security and law enforcement professionals.

Feature Highlighted

Ultra-Clear 4K Display

Real-time UHD visuals for unmatched clarity.

High-Resolution Dual Cameras

Capture every detail with 5MP wide-view and mirror tip cameras.

Extendable 1.5m Telescopic Pole

Reach deep, high, or hidden areas effortlessly.

Precision in Tight Spaces

0.5mm mirror tip camera designed for ultra-narrow inspections.

Powerful LED Illumination

Integrated LED rings ensure optimal visibility in darkness.

Durable and Field-Ready

Lightweight, IP65-rated, and built for rugged environments.

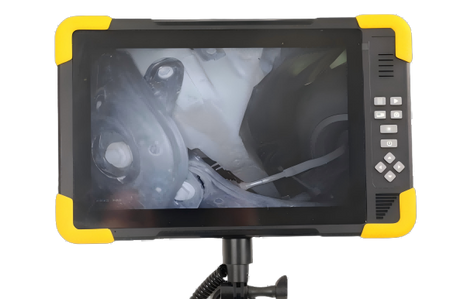

10.1" 4K UHD Display

Real-time viewing with crystal-clear image quality. Touchscreen interface for intuitive control.

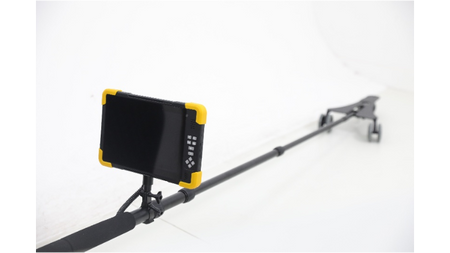

1.5m Extendable Pole

Access high, low, or confined areas quickly and efficiently.

0.5mm Mirror Tip Camera

Perfect for inspecting narrow pipes, cavities, and complex machinery components.

Specifications

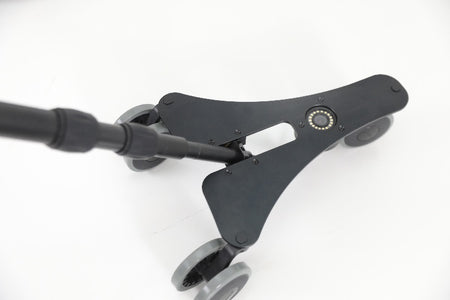

Universal Wheel Camera	5.0 MP CMOS, integrated 18-LED ring illumination
Telescopic Pole Camera	5.0 MP CMOS, 12-LED ring light, with 0.25 m flexible extension
Display & Control	10.1inch, 4K IPS touchscreen monitor
Primary Video Resolution	4K UHD (16:9) – 3840 × 2160 @ 25/30 fps
Additional Video Modes	2K (4:3) – 2560 × 1944 @ 25/30 fps; Full HD 1080p
Telescopic Pole Length	2 meters
Image Capture Resolution	Supports 12 MP, 8 MP, 4 MP, and 2 MP
Video Output Format	1080p AHD
Storage Capacity	MicroSD card support: 2 GB to 256 GB (optional)
Battery Pack	Dual 6200 mAh Li-ion batteries; up to 6 hours
Ingress Protection	IP65
Illumination Brightness	>50 Lux at 1 meter distance
Optimal Viewing Distance	0.4 to 5 meters
Net Weight	9 kg
System Dimensions	790 × 365 × 150 mm
Gross Weight	10.5 kg
Packaging Dimensions	750 × 160 × 430 mm

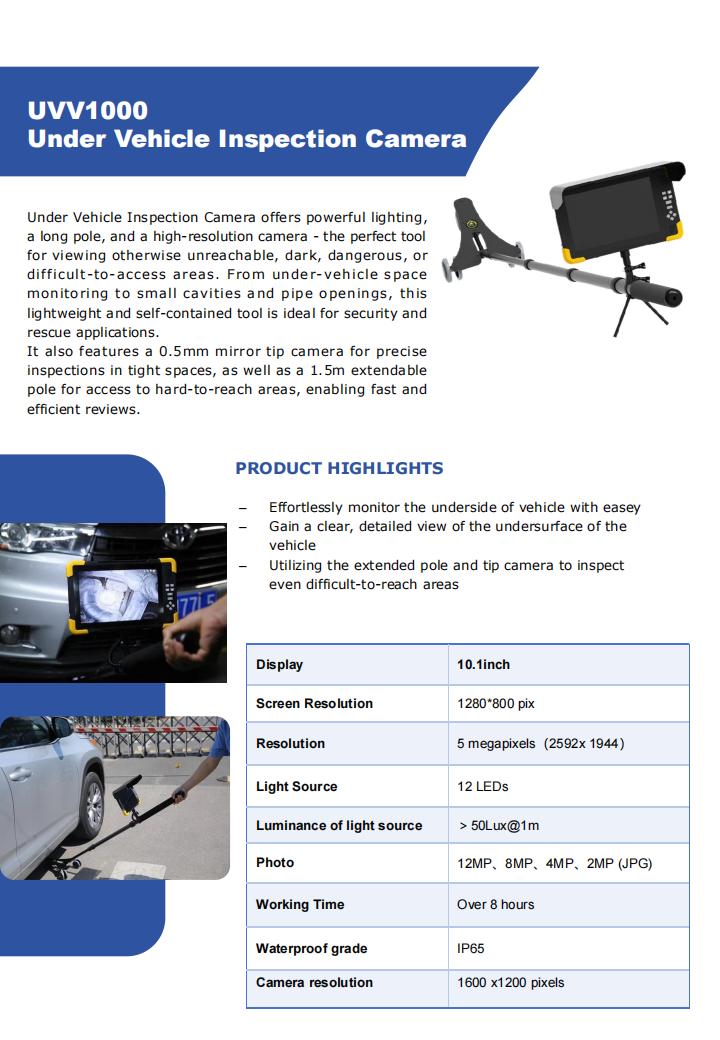

Product Brochure Download

Know someone who would be intersted in this product? Download the product brochure and share it with them or share this page on your socials by following the links below!

Download Product Brochure
