TRACELINE™ PX3-S Portable X-Ray System

PX3 Portable X-Ray System Public Security

The PX3 portable X-ray inspection system seamlessly combines advanced DR X-ray imaging technology, a low-dose pulsed X-ray source, and cutting-edge digital image processing capabilities. This potent blend provides versatile support across applications such as security inspections, VIP protection, EOD, Customs, and border control contraband searches. It guarantees high-resolution images and exceptional penetration performance, addressing the diverse needs of critical scenarios.

simplify setup

The PX3 Control Module

Hassle free setup whether you're scanning over WiFi or cabled connection. The PX3 control module automatically adjusts based on the network topology.

Power up or down

x-ray generators

Choose from two world class pulsed x-ray generators. Basic penetration with the 150KV-P Golden XR200 generator or power through with the 270KV pulse XRS3 generator.

Take your pick

Panel Options Built for the Mission

Choose the right fit for your operational needs. 14 inch light weight and compact for quick deployment and tight spaces or 17 inch for broader coverage in a single shot.

choose your controls

rugged computing options

Rugged computing options to match your mission profile. Choose between ultra-portable, glove-friendly tablet or the larger interface and full keyboard laptop. Both feature high-nit daylight-readable displays, ensuring clear visibility—even in direct sunlight.

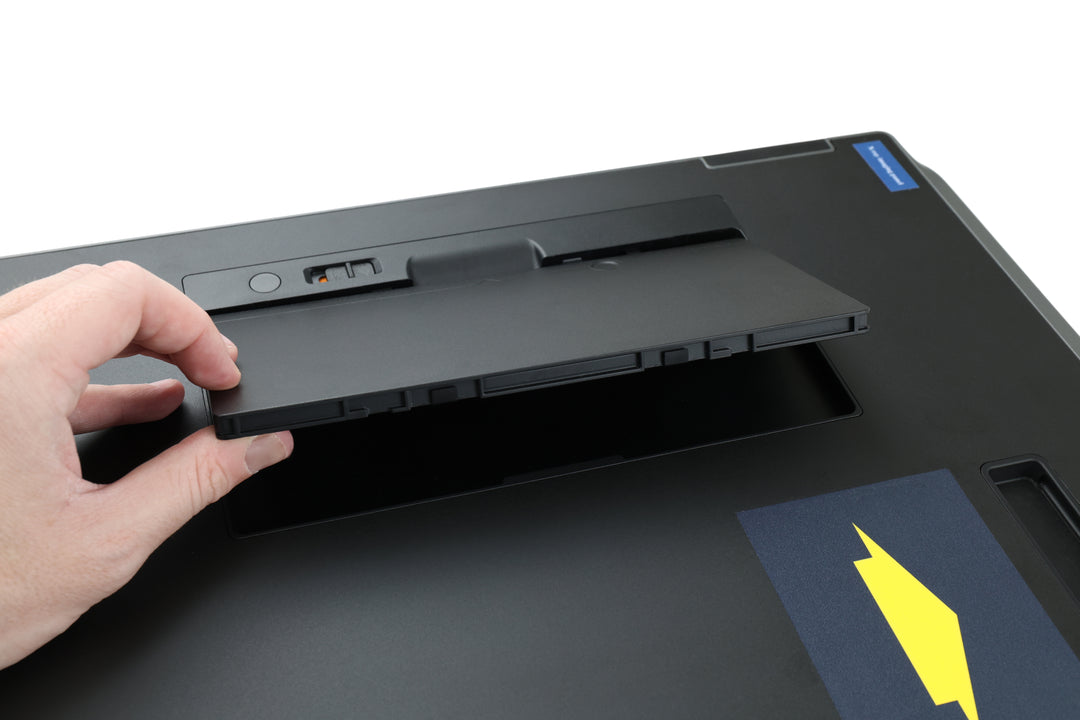

longer field time

Hot swappable batteries

All core PX3 components—the X-ray generator, imaging panel, and tablet/laptop—use hot-swappable batteries, allowing you to replace power sources on the fly without shutting down the system. This ensures uninterrupted operation in high-pressure environments where every second counts.

Product Specifications

X-ray Imaging Panel(Standard Size 14''）:
Imaging Area	14inch*17inch
Panel Dimension	460 x 384 x 15mm
Panel Thickness	15mm
Weight	3kg
Image Resolution	2560 x 3072
Pixel Size	100μm
Spatial Resolution	5 lp/mm
Battery	Build-in rechargeable battery
Wireless	Build-in WiFi Gigabit
System Control:
Cable Mode	50 meters (Cable reel included)
Wireless Mode	WiFi (150 meters)
X-ray Source:
Recommend	Golden XRS3 pulsed source (270KV)
Penetration	Up to 85mm steel plate with Golden XRS3 source
Software:
Image Capture	“One touch” to start capture
Image Processing	Auto/Manual image enhancement; AOI area enhancement; Grayscale adjustment; Color reverse; Zoom; Emboss; Pseudocolor; Image Measurement; Annotate; etc.
Image Stitching	up to 9 images
Command and Display Unit
	I5/16G/14”, touch screen, Win11

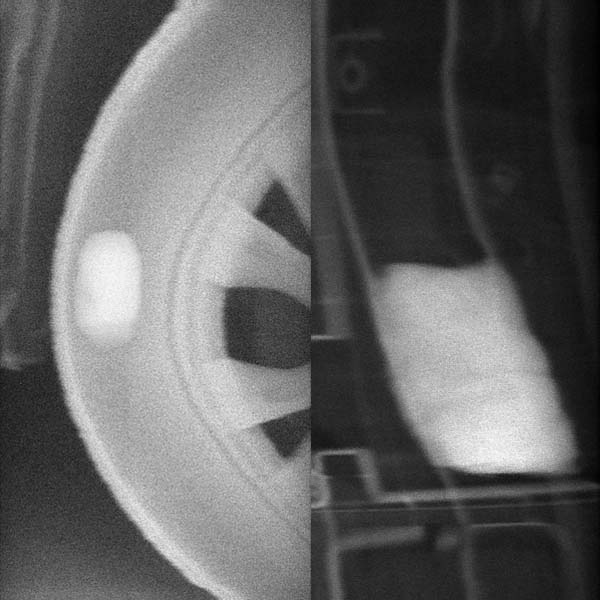

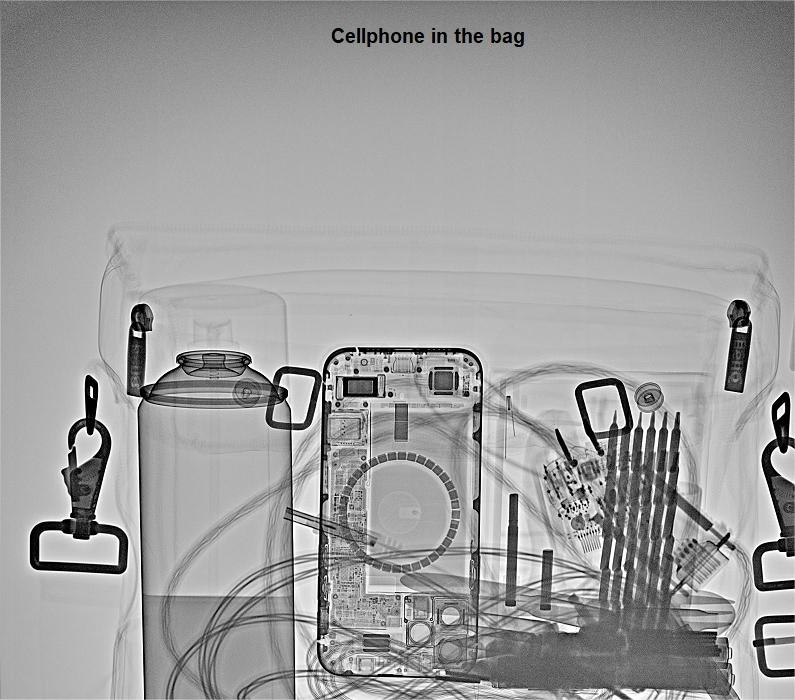

See the Unseen

Real Scans. Real Clarity.

Explore high-resolution X-ray images captured by the PX3 system in real-world scenarios—from dense materials to intricate threat detection.
