HDX International

TRACELINE™ PX3-S Portable X-Ray System

PX3 delivers real-time HD imaging in a compact, battery-powered design. Unlike legacy systems using amorphous silicon detectors (3.3 lp/mm), PX3 offers enhanced clarity with up to 5 lp/mm resolution. Supporting both 50m wired and 5G wireless transmission, it enables safe, remote operation in high-risk environments. Its user-friendly software includes image splicing, zoom, and on-screen measurement.
From IED detection to customs contraband scanning, PX3 is ideal for military, law enforcement, and security forces seeking a reliable portable X-ray solution.
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System
PX3 Portable X-Ray System Public Security
TRACELINE™ PX3-S Portable X-Ray System
TRACELINE™ PX3-S Portable X-Ray System

  • 200m

    Wireless range

  • 100µm

    Min Pixel Size

  • 16-bit

    A/D Conversion

  • IP65

    Rugged Tablet
MISSION

Know what you're facing before you move to render it safe.

Control the scene. Control the distance. Get control of the information your team needs before the next decision gets made.
THE PROBLEM

A field X-ray system should perform like a system, not a parts kit.

Many portable X-ray systems are built from components that weren't designed as a combined workflow. That may pass a demo. It's harder to trust when the link drops and you're under maximum pressure.

THE PARTS KIT PROBLEM

✕ Source from one supplier ✕ Panel from another ✕ Wireless bridge added later ✕ Awkward field software

THE PX3-S SOLUTION

PX3-S was built around the full imaging chain: generator, detector, control module and operator interface. One system. One workflow. One place to look when something needs attention.
FIELD WORKFLOW

Set up. Step back. Shoot the image.

PX3-S is designed for the field sequence your team already knows. The interface is built for gloved hands, low patience and high stakes.
1

Place the detector

Position panel near the suspect item
2

Position the source

Set the X-ray generator opposite the panel
3

Confirm status

Check system ready on the HMI
4

Move back

Retreat to safe standoff distance
5

Capture

One tap — image on screen in seconds

CAPABILITIES

SAFE STAND-OFF

  • 60m wireless standoff

    PX3-S supports wireless operation up to 60 meters, giving operators more room to work from cover, hard corners or protected positions.

    For EOD and tactical teams, the detector can be positioned by robot while the operator remains at standoff. The image comes back to the high resolution, sunlight readable HMI.

  • 50m hardwired option

    PX3-S also supports a 50-meter hardwired connection. Some sites are crowded. Some environments are noisy. Some missions call for cable. PX3-S gives your team both options.

One Delivery. One Vendor. One Support Call.

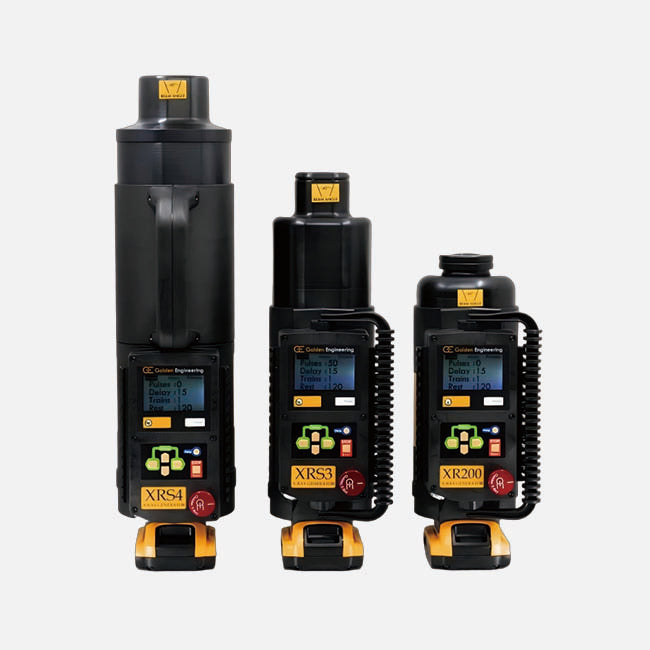

  • X-ray generator

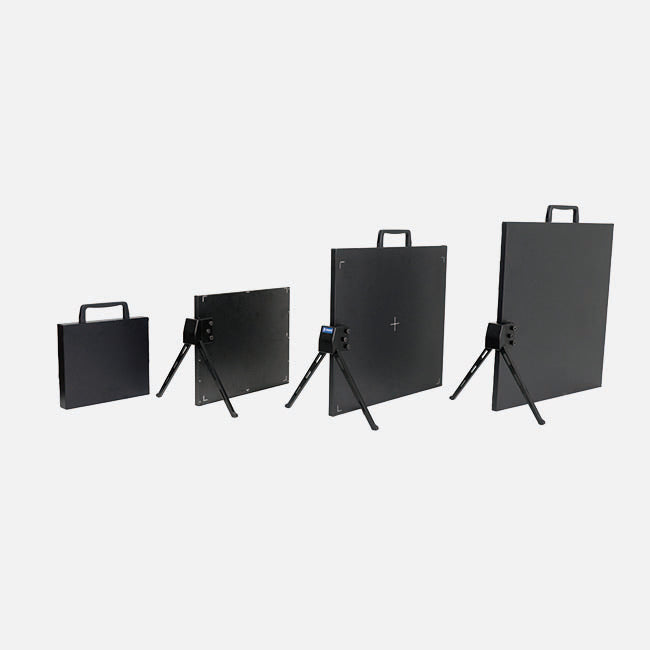

  • Digital detector panel

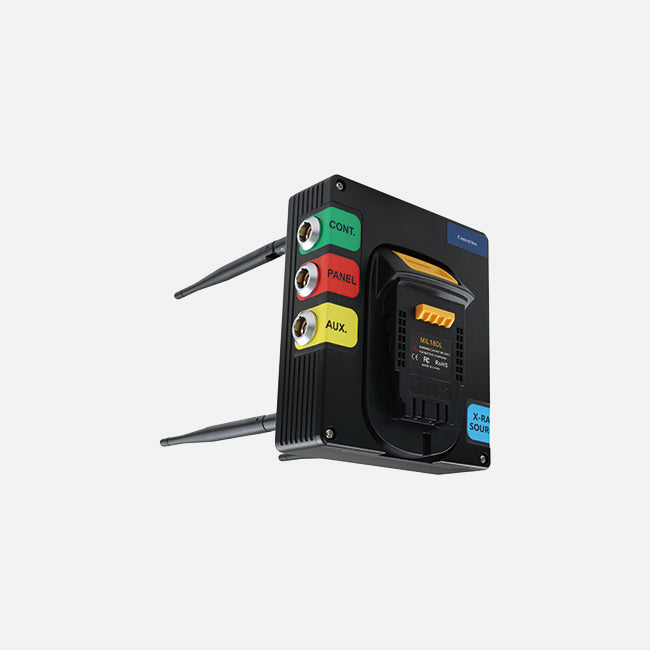

  • Control Module

  • 50m cable reel

  • Tablet or Laptop

  • Accessories

(All Golden X-ray source options are compatible)

Additional panel options available

  • Enhanced wireless module for longer transmission distance.
  • Supports 2.4GHz and 5GHz Wi-Fi

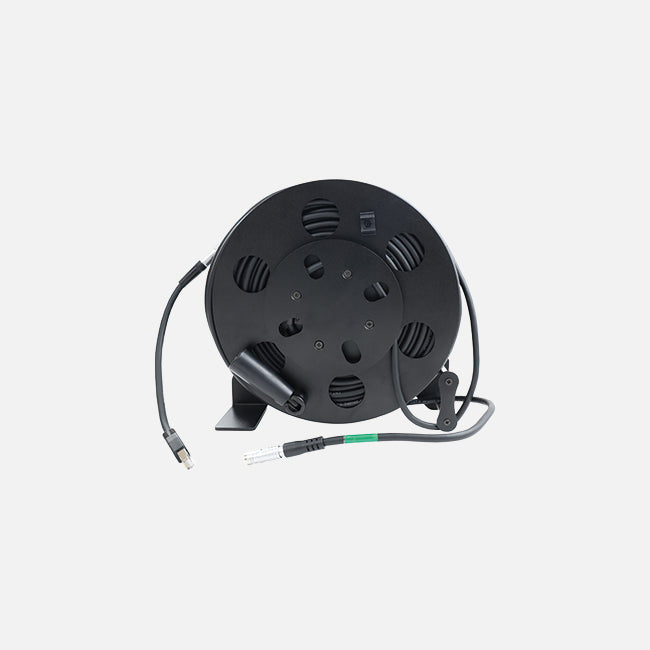

50m cable reel for wired operation.

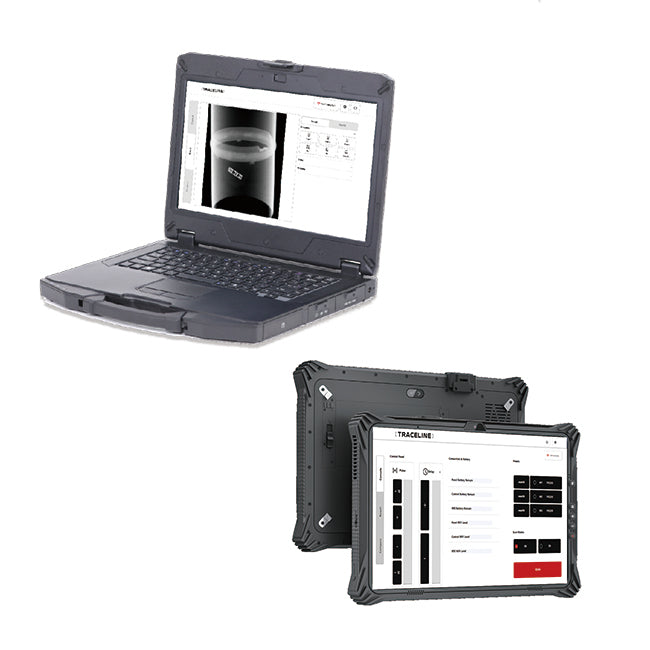

MIL-STD rated, IP65 rugged tablet with high resolution, sunlight readable screen and PX3 Commander pre-installed

Security dongle for software authentication

DeWalt 20V batteries and charger

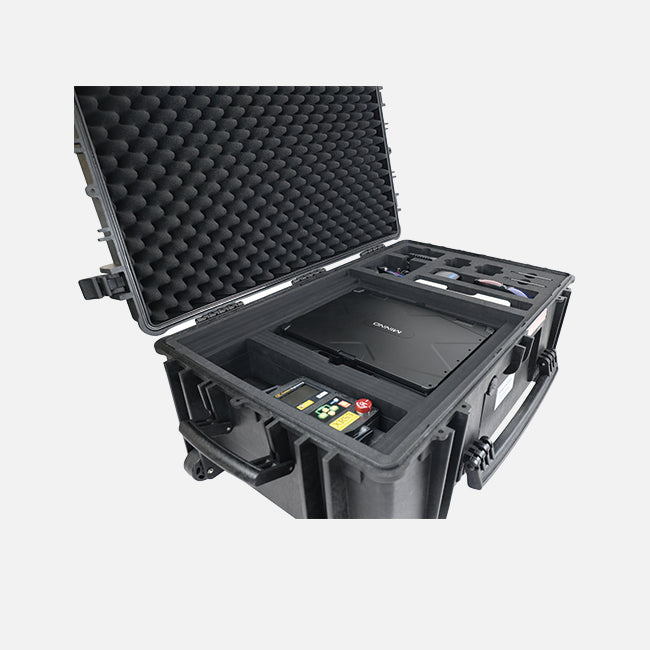

Wheeled Pelican case

Built for security work that can't wait for a lab.

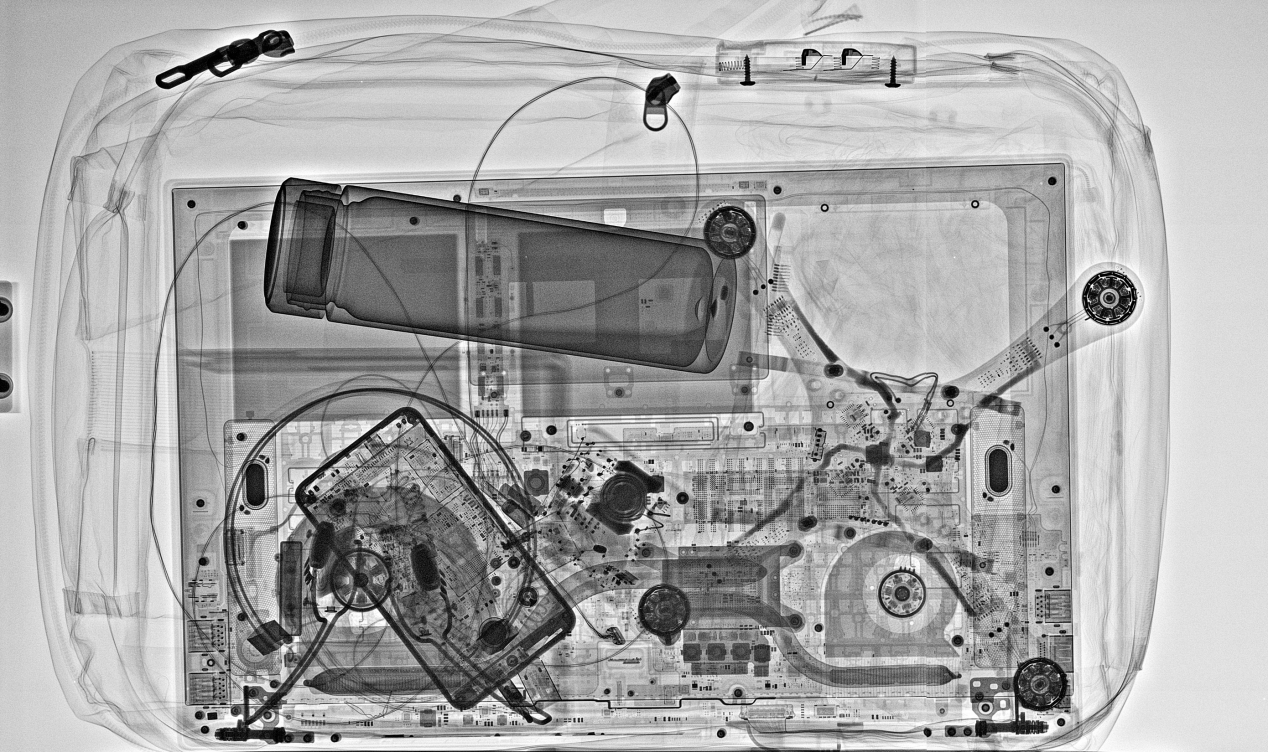

  • Inspect bags, boxes, mail, parcels and containers without opening them first.

    Suspicious Packages

  • Support threat assessment, diagnostics and render-safe planning from standoff.

    EOD & Bomb Squad

  • Check panels, compartments and concealed areas for hidden items.

    Vehicle & Cargo

  • Inspect suspicious objects, packages and concealed materials with non-intrusive imaging.

    Corrections & Contraband

  • Portable inspection tool for high-risk items and controlled access points.

    Event & Facility Security

  • Screen packages, containers and concealed spaces without destructive inspection.

    Fire & Arson Investigation
SPECIFICATIONS

PX3-S at a glance.

X-Ray Source
Golden Engineering XR150 / XR200 / XRS3 / XRS4
Panel Options
14" or 17", 139µm or 100µm pixel pitch
Resolution
Up to 5 LP/mm
Panel Rating
IP54, 4–4.5 kg, 4.5–6.5 hr battery
Control Module
Proprietary, dual-band WiFi, 200m wireless range
HMI
MIL-STD rated, IP65 rugged tablet/laptop with sunlight readable screen, Windows 11
Software
PX3 Commander, dongle-authenticated
Operating Temp
0–50°C
SYSTEM ARCHITECTURE

One system. Not three products in a case.

The Control Module connects the source, detector and operator interface into one coordinated workflow. This is the difference between equipment that travels and equipment that works when it gets there.
Auto-detects hardware topology on startup
Dual-band WiFi: 2.4 GHz and 5.8 GHz
200m wireless range
50m cable reel for hardwired operation
DeWalt 20V battery platform
Complete kit in wheeled Pelican case

The moment is complicated. The system shouldn't be.

PX3-S gives the operator a clear view of system status across the generator, panel and HMI. Fewer unknowns. Faster recovery. Better control of the scene
