Description:

The MESA® is a portable, handheld RF receiver that detects known, unknown, illegal, disruptive, or interfering transmissions. MESA® has the portability and operational features not found on other spectrum analyzers. It provides tools, specifications and design features for locating unknown signals throughout a wide frequency range up to 6 GHz (12 GHz with the Down Converter antenna). MESA® has a new Patented SmartBars™ operational mode that displays signal activity in a bar graph.

Features

MESA™ displays a full range of frequency data to 6GHz (12GHz with the Down Converter Antenna)
Sweep modes:

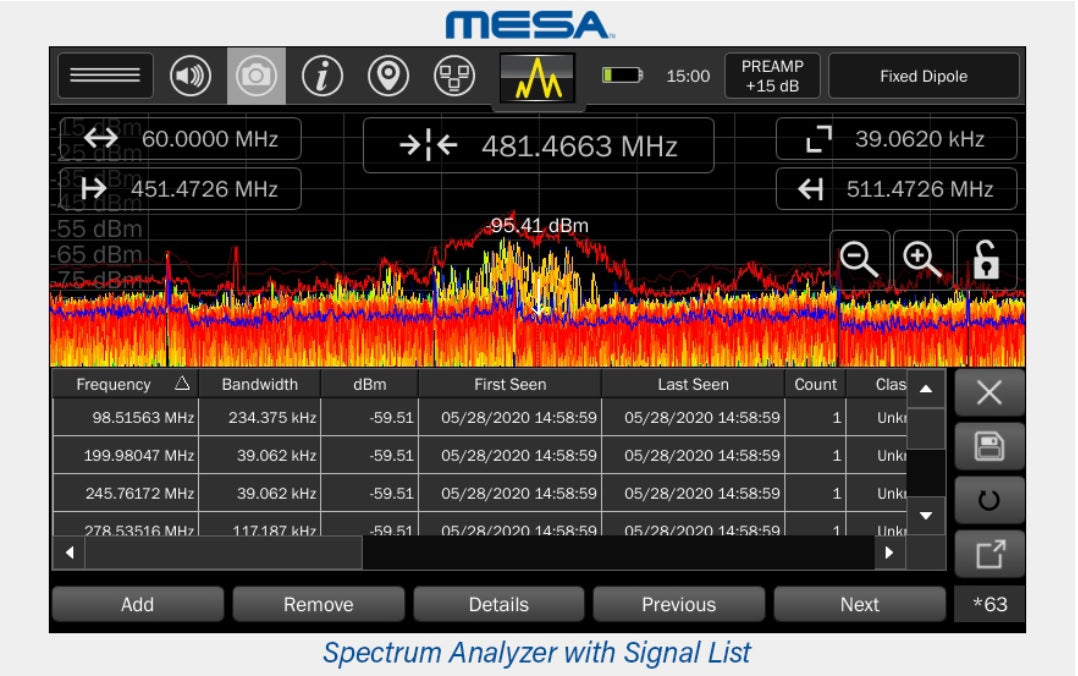

- Spectrum Analyzer: zoom, screen lock, frequency span, start/stop frequencies, resolution bandwidth, center frequency

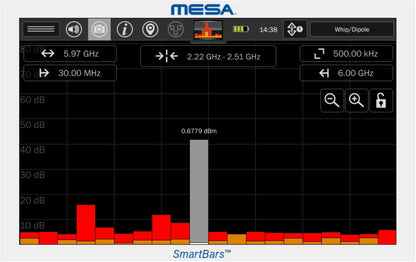

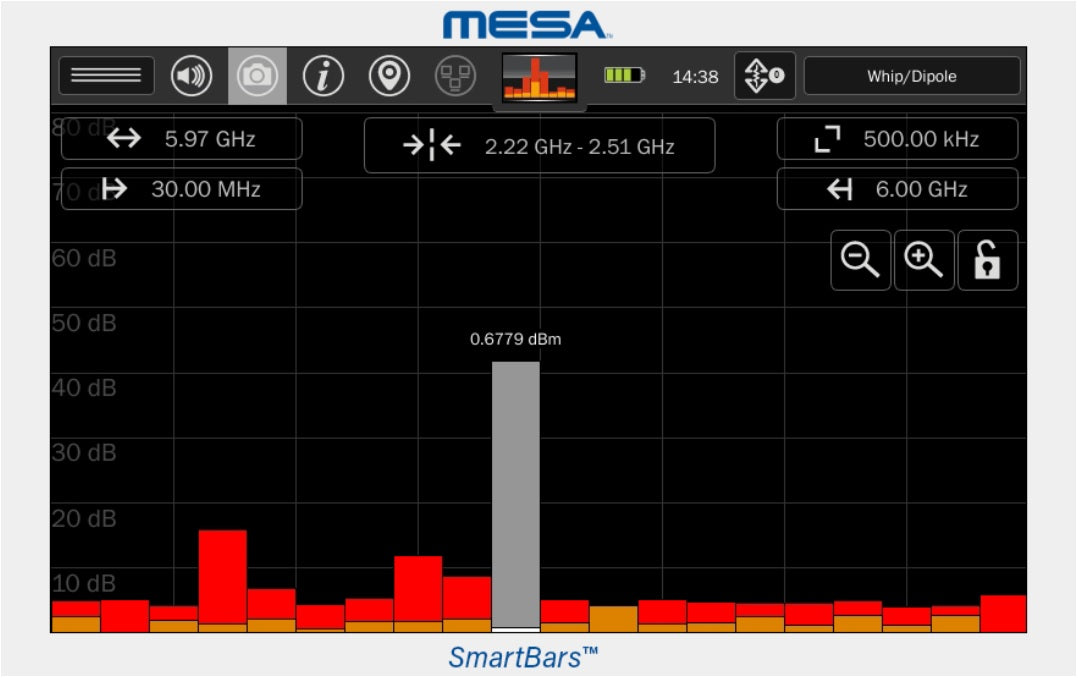

- SmartBars™: displays new or increased RF energy in a bar graph
- Mobile Bands: displays RF in specific bands (i.e. Wifi, GSM, etc.)
- WiFi: displays nearby access points and relative signal strength
- Bluetooth^®: displays nearby pairing activity
Display Features: Persistence, Raster Waterfall, Spectral Power Histogram (RSSI), Peak Trace, Average Trace, Patent Pending Cached Peak

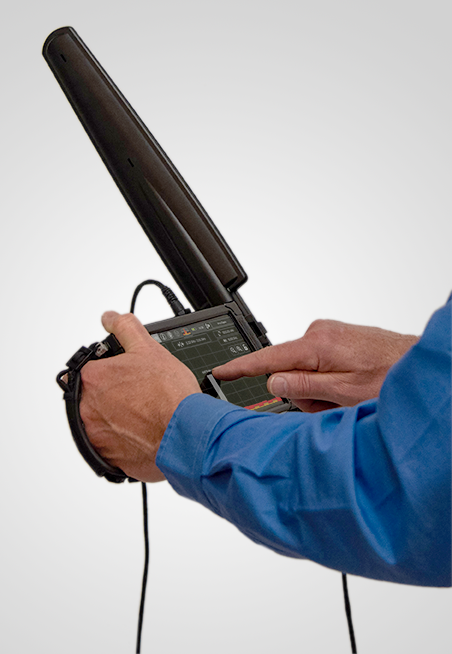

Display & Controls: 7in/18cm capacitive touch screen with brightness and zoom controls
MCP (Multi-Carrier Probe): Carrier Current, Visible Light/IR, Ultrasonic, Audio Transformer, and Acoustic Leakage
Antenna Probe Recognition automatically detects REI antennas/probes and adjusts display
Audio Demodulation: AM/FM
Alerts: haptic, audible, and visible
Remote Access: Ethernet port for VNC remote access
Signal List Generation: Manual or automatic depending on mode
GPS: Removable USB, captures and saves GPS data
Audio: Built-in speaker and external headphones with adjustable volume control.
Microphone port for Acoustic Leakage Probe and Audio Transformer
Data Ports: 2 USB 2.0 Type A ports for software upgrades, file storage, file transfer

Applications

Detect RF WiFi, Bluetooth^®, cell phones, illicit transmissions
Interference detection & troubleshooting
RF research and development
Wireless industry developers
Intelligence protection
Communications Site Surveys
Eavesdropping detection
RF emissions analysis
Spectrum misuse investigation

Specifications:

Receiver
Sweep Speed	>200 GHz/second
Operating Freq. Range	10 kHz - 6 GHz /*12 GHz
Resolution Bandwidth Variable depending on span	0.0380 kHz to 312.5 kHz
Instantaneous Bandwidth	25 MHz
DANL - Noise Floor	312.5 kHz RBW with Pre-amp: -90 dBm, 9.765 kHz RBW with Pre-amp: -110dBm
Attenuation	0 dB, 10 dB, 20 dB, Auto
Preamp	+15 dB
Detection Types	RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic
Spurious Free Dynamic Range	81.6 dB
Receiver Type	Swept-tuned Superheterodyne
Audio Demodulation AM/FM demodulation with filter options	Auto, 200 kHz, 20 kHz, 5 kHz
Input Port	QMA connector (RF input) for included and auxiliary RF antennas
POWER
Supply AC	100-240V/50-60Hz; single rechargeable Li-ion battery (includes 1 spare)
Run time	~3 hours (typical) per battery
Charge time	~3 hours per battery (typical)
MECHANICAL

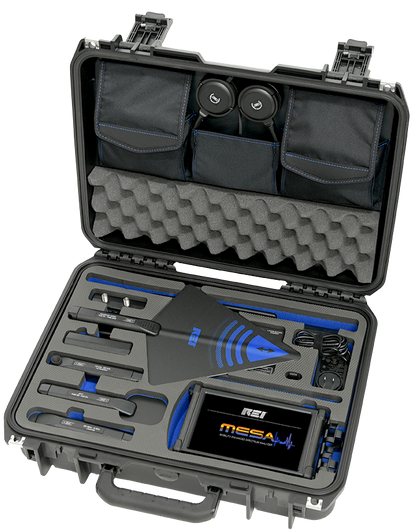

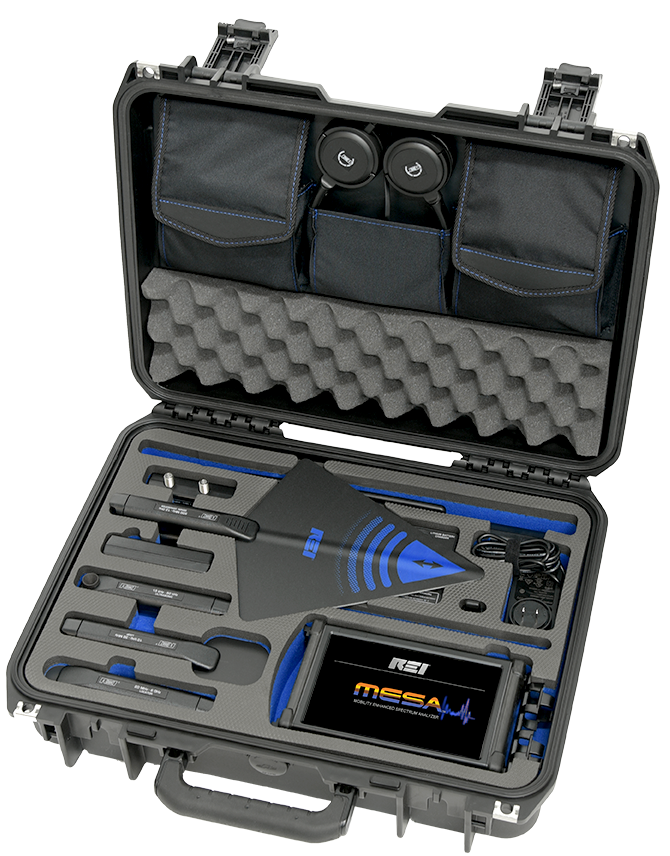

Carrying Case	6 x 15 x 18.5in / 16 x 38 x 47cm
Case weight (with accessories)	15lbs. / 6.8kg
Unit dimensions	5 x 8 x 2 in /13 x 20 x 5 cm
Unit weight (with batteries)	2.4lbs/1.1kg including battery
THERMAL
Operating temperature	-10° to 53° C
Battery charging temperature	5° to 37° C
Storage temperature	20° to 60° C
