TRACELINE™ Surveillance Solution
Long Range Color Night Vision Camera
A portable full-color day and night imaging system designed for professional long-distance observation, field surveillance, emergency response, and evidence documentation.
Core Performance
1000 m
Daytime human observation
500 m
Nighttime human observation
0.0001 lux
Minimum color illumination
6 h+
Built-in battery operation
Professional Long-Range Observation in Low-Light Conditions

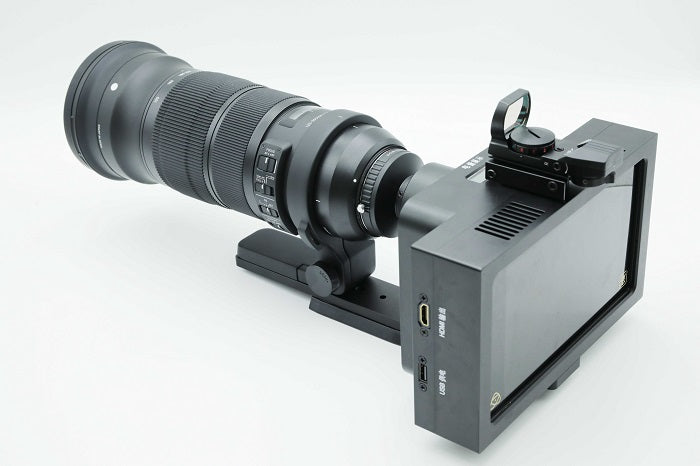

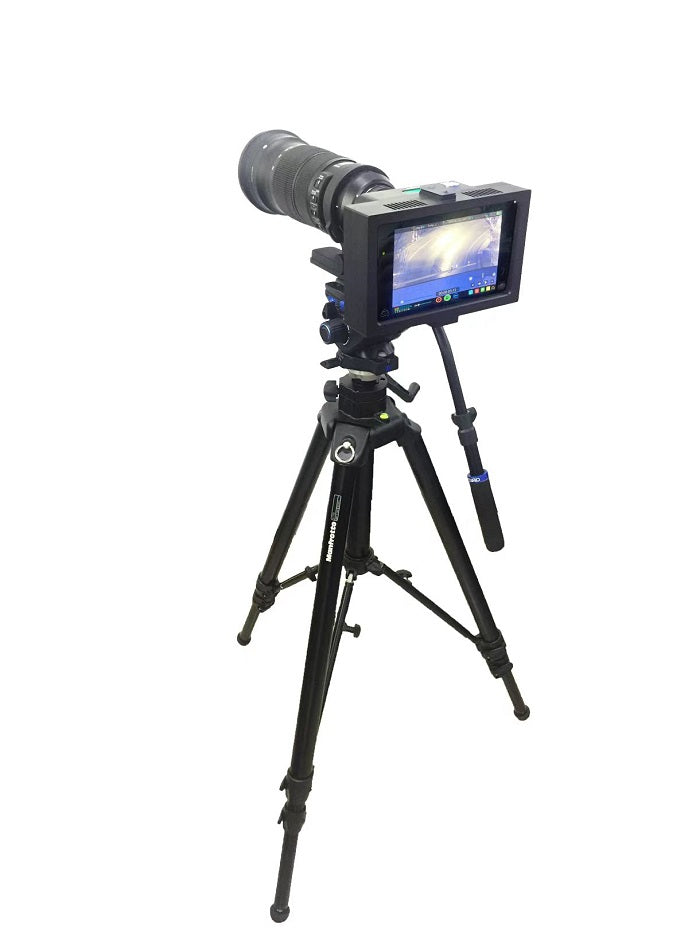

The Long Range Color Night Vision Camera integrates an ultra-low-light starlight-level full HD color camera, a large-aperture 60–600 mm professional zoom lens, a 7-inch 1080p IPS display, SSD recording, and a built-in high-density lithium battery pack. It supports clear color imaging in extremely dark environments and provides a practical field monitoring tool for professional users.
Full-Color Night Imaging
Captures realistic full-color HD images and videos in low-light nighttime environments, supporting both observation and documentation.
Long-Range Target Observation
Supports long-distance observation of people, vehicles, and key targets under suitable field conditions.
60–600 mm Zoom Lens
Equipped with a professional photographic-grade large-aperture zoom lens for flexible long-distance monitoring.
Real-Time Image Enhancement
Supports real-time software-based 2D/3D noise reduction and electronic defogging to improve image visibility in low-light, foggy, or hazy environments.
Photo and Video Capture
Supports both still image capture and video recording for scene documentation, target observation, and evidence review.
Portable Integrated Design
Built with a rugged aluminum housing and internal lithium battery pack for mobile deployment in field environments.
500 m Night Observation Reference
Example images captured during long-distance nighttime observation. Actual image clarity may vary depending on lighting, weather, target angle, atmospheric visibility, lens zoom level, and field conditions.
500 m Night Observation
Long-distance nighttime target observation reference image.
Facial Feature Observation Reference
Nighttime observation example under suitable field conditions.
Note: The images above are for observation reference only. Recognition performance may vary depending on distance, lighting, weather, target movement, image angle, and actual deployment conditions.
Designed for Field Surveillance, Security Monitoring and Evidence Collection
The camera is suitable for professional users who require long-distance visual monitoring, nighttime observation, and reliable image or video documentation in outdoor or mobile operations.
Counter-terrorism operations
Rescue and emergency response
Evidence collection
Fire monitoring
Illegal activity monitoring
Border and perimeter surveillance
Long-distance vehicle observation
Nighttime security monitoring
Technical Specifications
Key technical data of the Long Range Color Night Vision Camera.
| Item | Specification |
|---|---|
| Sensor Type | CMOS |
| Sensor Size | 1/2 inch CMOS |
| Effective Pixels | 1920 × 1200 |
| Video Resolution | 1080P, 25–60 fps |
| Frame Rate Adjustment | Manual adjustment, 25–60 fps |
| Video Signal | SDI |
| Minimum Color Illumination | 0.0001 lux |
| Imaging Mode | Full color imaging in daytime and night illumination |
| Lens | Professional large-aperture variable zoom lens, 60–600 mm |
| Zoom Control | Manual zoom adjustment |
| Observation Range, Human | Day: up to 1000 m / Night: up to 500 m |
| Recognition Range, Human | Day: up to 600 m / Night: up to 200 m |
| Digital Zoom | Maximum 16× |
| Wide Dynamic Range | 120 dB |
| Image Enhancement | Real-time software-based 2D/3D noise reduction and electronic defogging |
| White Balance | Automatic white balance |
| Exposure Mode | Shutter aperture |
| Fast-Moving Target Performance | Fast-moving objects may appear blurred depending on movement speed, distance, lighting, zoom level, and exposure settings |
| Image Capture | Photo capture and video recording |
| Display | 7-inch IPS widescreen LCD |
| Screen Resolution | 1920 × 1200 |
| Screen Brightness | Up to 2000 nits |
| Operating Mode | Touch screen control |
| Storage | 2.5-inch SSD hard disk, standard 1 TB |
| Video File Format | MOV, 10-bit code |
| Working Voltage | DC 10–13 V |
| Power Consumption | 30 W |
| Battery | Built-in 11.1 V / 19.2 Ah lithium battery |
| Battery Life | Approx. 6 hours under normal operation |
| External Power | AC 110–240 V |
| Working Temperature | -10°C to 50°C |
| Housing | Rugged compact aluminum housing |
| Weight | 5.4 kg |
| Camera Size | L430 × W230 × H154 mm |
Note: Long-range observation and recognition performance may vary depending on weather, lighting, target size, target speed, target angle, atmospheric visibility, lens zoom level, and field conditions. The video frame rate is manually adjustable from 25 to 60 fps. As the system records original video without secondary post-processing, fast-moving objects may appear blurred depending on actual operating conditions.
Optional Accessories
Optional accessories are available for enhanced nighttime operation and flexible field deployment.
Laser Supplement Light
- 850 nm ± 10 nm wavelength
- Black and white video mode when used
- Power: 3.8 ± 0.3 W
- Voltage: DC 12 V ± 10%
- Power consumption: ≤17 W
- Safety level: Class 3B, FDA / IEC
- Adjustable field of view: 2.0°–70°

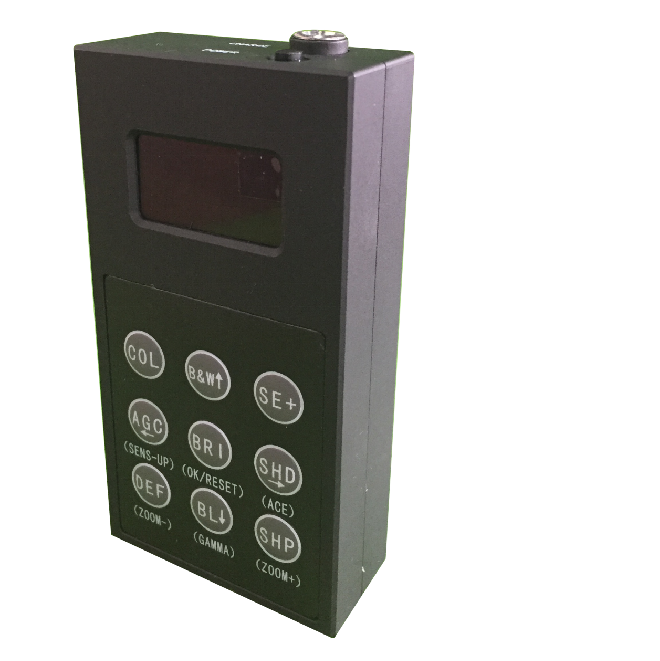

Remote Control
- English interface
- Built-in 7.4 V / 1200 mAh lithium battery
- More than 10 hours continuous operation
- Button control
- 1.3-inch OLED display
- Size: 110 × 55 × 25 mm
- Weight: 115 g
HD Glasses
- Micro-OLED screen
- 1920 × 1080 resolution
- Diopter adjustment from hyperopia 300° to myopia 800°
- Eyepiece pupil adjustment: 58–74 mm
