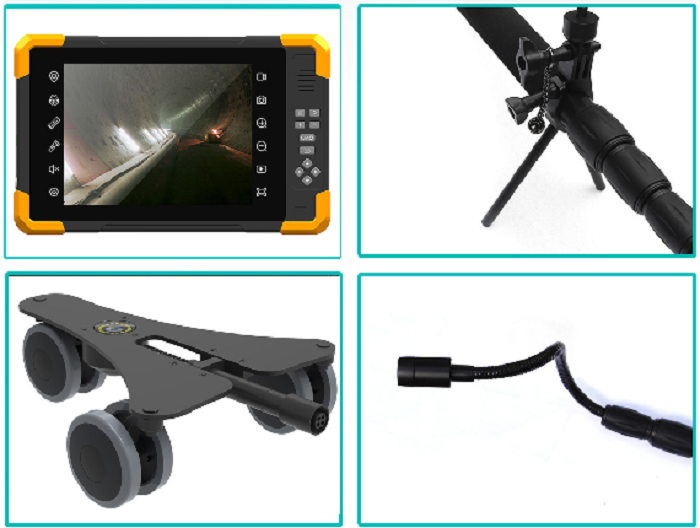

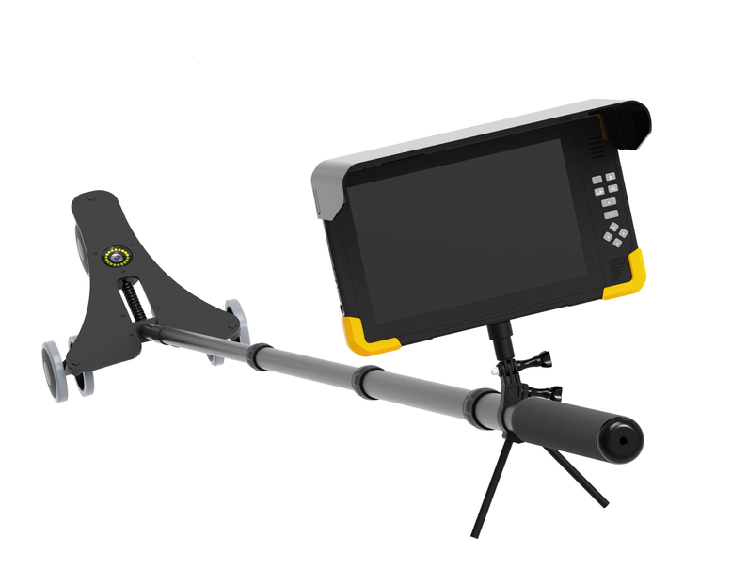

TRACELINE™ Under Vehicle Inspection Camera
Easily inspect dark, dangerous, or hard-to-reach areas—under vehicles, inside cavities, and narrow pipes—with TRACELINE™ Under Vehicle Inspection Camera. This lightweight, portable system combines a high-resolution camera, powerful LED lighting, and a 1.5m extendable pole. Designed for security checks, rescue operations, and precision inspection, it helps you see clearly where others can't.
Couldn't load pickup availability
Feature Highlighted
Ultra-Clear Display
Real-time FHD visuals for unmatched clarity.
High-Resolution Dual Cameras
Capture every detail with 5MP wide-view and mirror tip cameras.
Extendable 1.5M Telescopic Pole
Reach deep, high, or hidden areas effortlessly.
Precision in Tight Spaces
2.8mm mirror tip camera designed for ultra-narrow inspections.
Powerful LED Illumination
Integrated LED rings ensure optimal visibility in darkness.
Durable and Field-Ready
Lightweight, IP65-rated, and built for rugged environments.
10.1" FHD Display
Real-time viewing with crystal-clear image quality. Touchscreen interface for intuitive control.
1.5M Extendable Pole
Access high, low, or confined areas quickly and efficiently.
2.8MM Mirror Tip Camera
Perfect for inspecting narrow pipes, cavities, and complex machinery components.
Specifications

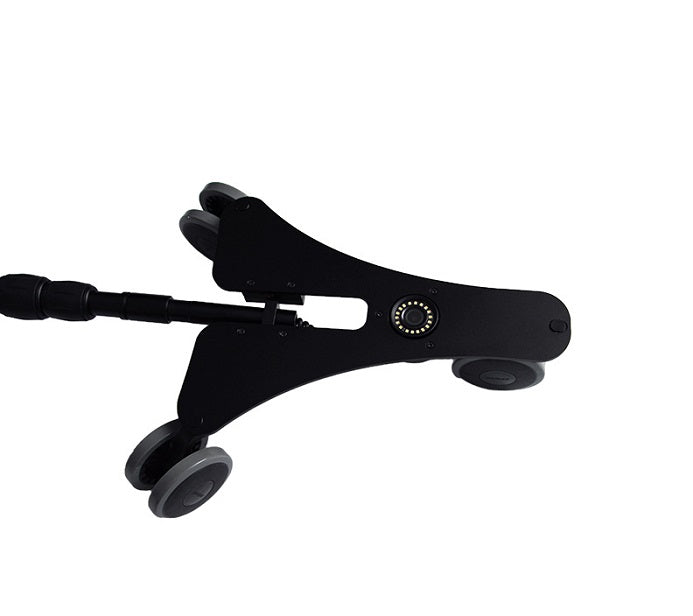

| Universal Wheel Camera | 5.0 MP CMOS, integrated 18-LED ring illumination |
| Telescopic Pole Camera | 5.0 MP CMOS, 12-LED ring light, with 0.25 m flexible extension |

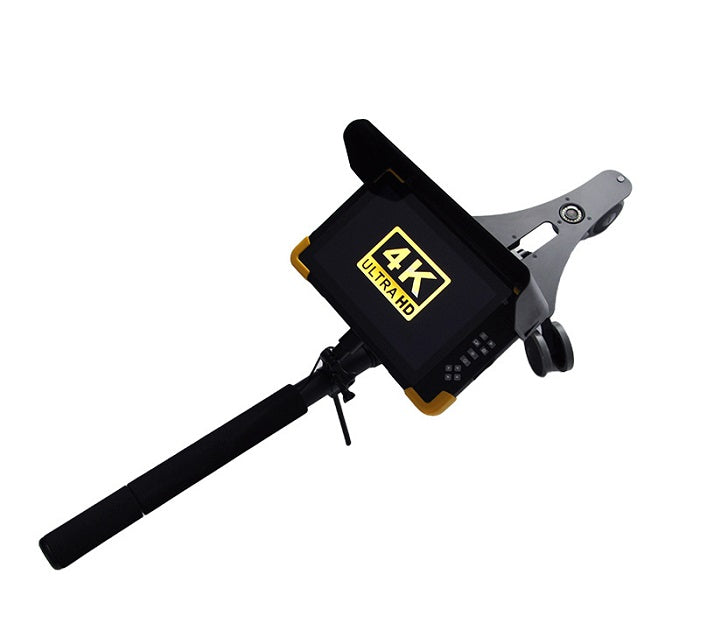

| Display & Control | 10.1inch, 4K IPS touchscreen monitor |
| Primary Video Resolution | 4K UHD (16:9) – 3840 × 2160 @ 25/30 fps |
| Additional Video Modes | 2K (4:3) – 2560 × 1944 @ 25/30 fps; Full HD 1080p |
| Telescopic Pole Length | 2 meters |
| Image Capture Resolution | Supports 12 MP, 8 MP, 4 MP, and 2 MP |
| Video Output Format | 1080p AHD |
| Storage Capacity | MicroSD card support: 2 GB to 256 GB (optional) |
| Battery Pack | Dual 6200 mAh Li-ion batteries; up to 6 hours |
| Ingress Protection | IP65 |
| Illumination Brightness | >50 Lux at 1 meter distance |
| Optimal Viewing Distance | 0.4 to 5 meters |
| Net Weight | 9 kg |
| System Dimensions | 790 × 365 × 150 mm |
| Gross Weight | 10.5 kg |
| Packaging Dimensions | 750 × 160 × 430 mm |
