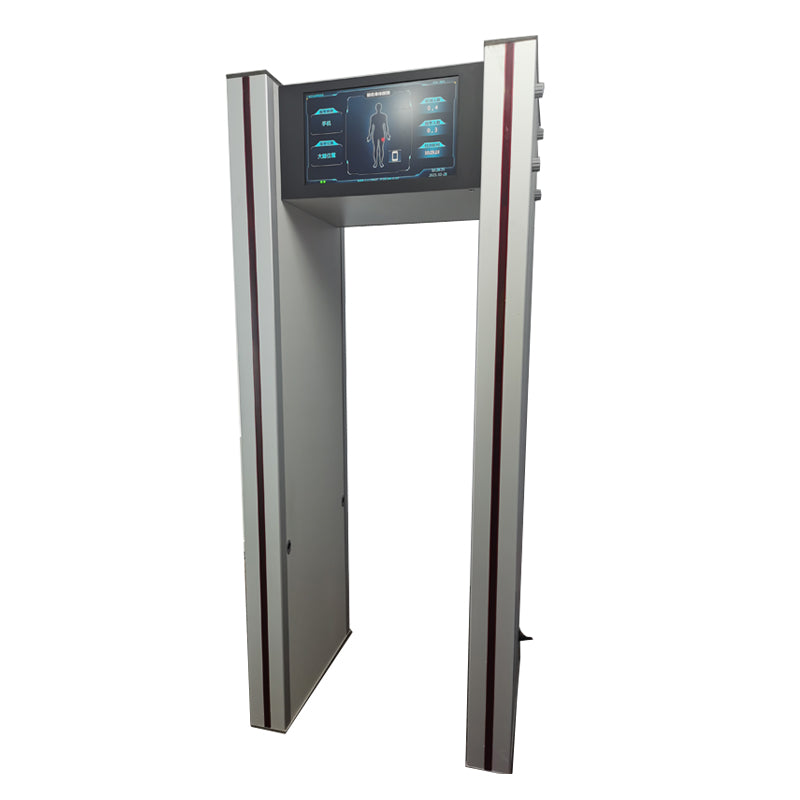

TRACELINE™ Security Screening Solution
Beyond Conventional Metal Detection
Conventional walk-through metal detectors alarm on most metal objects, often requiring manual secondary inspection and slowing down entry flow. SmartGate is designed to identify concealed electronic devices and selected contraband items while reducing false alarms from common daily carry items.
It helps security teams identify target items more efficiently, without unnecessary alarms from items such as keys, watches, glasses, belt buckles, coins, lighters and clothing accessories.
Multi-State Electronic Device Detection
Detects Personal Electronic Devices in Controlled Areas
SmartGate is designed to detect concealed mobile phones, laptops, tablets, iPads, digital cameras and other personal electronic devices carried by personnel entering controlled areas.
Built for controlled electronic device screening
Designed for areas where mobile phones and personal electronic devices are strictly controlled, helping reduce manual checks and unnecessary alarms.
Powered On
Detects phones in normal operating status.
Powered Off
Detects phones even when switched off.
SIM Card Removed
Detects phones without relying on network activity.
Battery Removed
Supports detection of phones with the battery removed.
Flexible Security Modes
Three Working Modes for Different Security Needs
SmartGate provides three selectable working modes to support different security screening requirements, from electronic device control to contraband detection.
Electronic Device Detection Mode
Detects mobile phones, laptops, iPads, digital cameras and other electronic products carried by personnel entering secure areas.
Electronic Device + Contraband Mode
Detects mobile phones and other electronic products together with selected dangerous items such as small knives or firearm-related threats, while reducing false alarms from common personal belongings.
Contraband Detection Mode
Detects knives, guns, cans, tubes, dangerous tools and controlled sharp objects, while reducing alarms from common items such as buttons, necklaces, watches, cigarettes, lighters, keys, coins and belt buckles.
High-Flow Screening
Fast, Contactless Walk-Through Screening
SmartGate supports fast screening without changing normal walking habits. Under normal walking conditions, the passage time is less than 1.2 seconds.
The system can also identify target items during fast passage or very slow movement, helping maintain efficient access control in high-traffic secure areas.
<1.2s
Normal passage time
>96%
Detection accuracy under proper configuration
24″
Front and rear HD screens
3
Selectable working modes
Alarm & Monitoring
Visual Alarm Localization and Remote Monitoring
The gate is equipped with LED alarm light bars, audible alarms and adjustable alarm volume. Front and rear 24-inch HD LCD screens display alarm locations through a virtual human body interface, together with alarm count, passage count and optional temperature information.
The system supports remote PC connection for dual-screen monitoring between the gate and the duty room. An optional floor-standing display terminal can also be configured for synchronized alarm display.
Technical Data
Technical Specifications
| Power Supply | AC 100V–240V, 50/60Hz |
| Power Consumption | <180W |
| Overall Dimensions | 2350(H) × 1000(W) × 760(D) mm |
| Passage Dimensions | 1900(H) × 700(W) × 760(D) mm |
| Display | Front and rear 24-inch HD LCD screens |
| Alarm Method | LED alarm light bar + audible alarm |
| Alarm Volume | Adjustable |
| Color | Silver |
| Weight | Approx. 100kg |
| Operating Environment | -20°C to +45°C |
Secure Your No-Phone Area with TRACELINE™ SmartGate
Contact HDX International for technical configuration, quotation and deployment support.
