Product Features
-
Real-time 1080p Audio & Video Transmission
Provides high-definition live video and duplex audio between the EOD operator and command center, with <0.25s latency and digital noise reduction to minimize interference in noisy or high-EMI environments. -

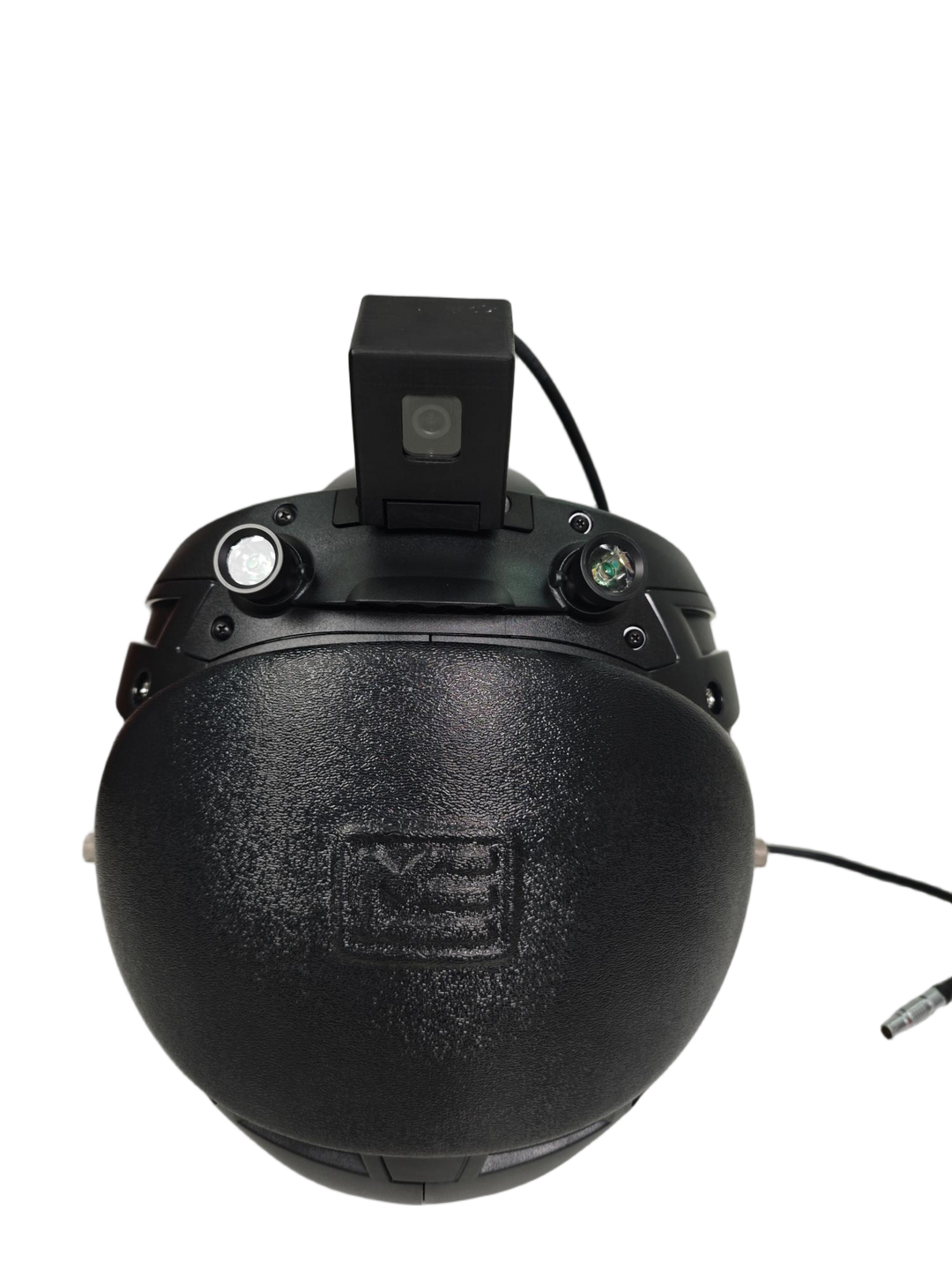

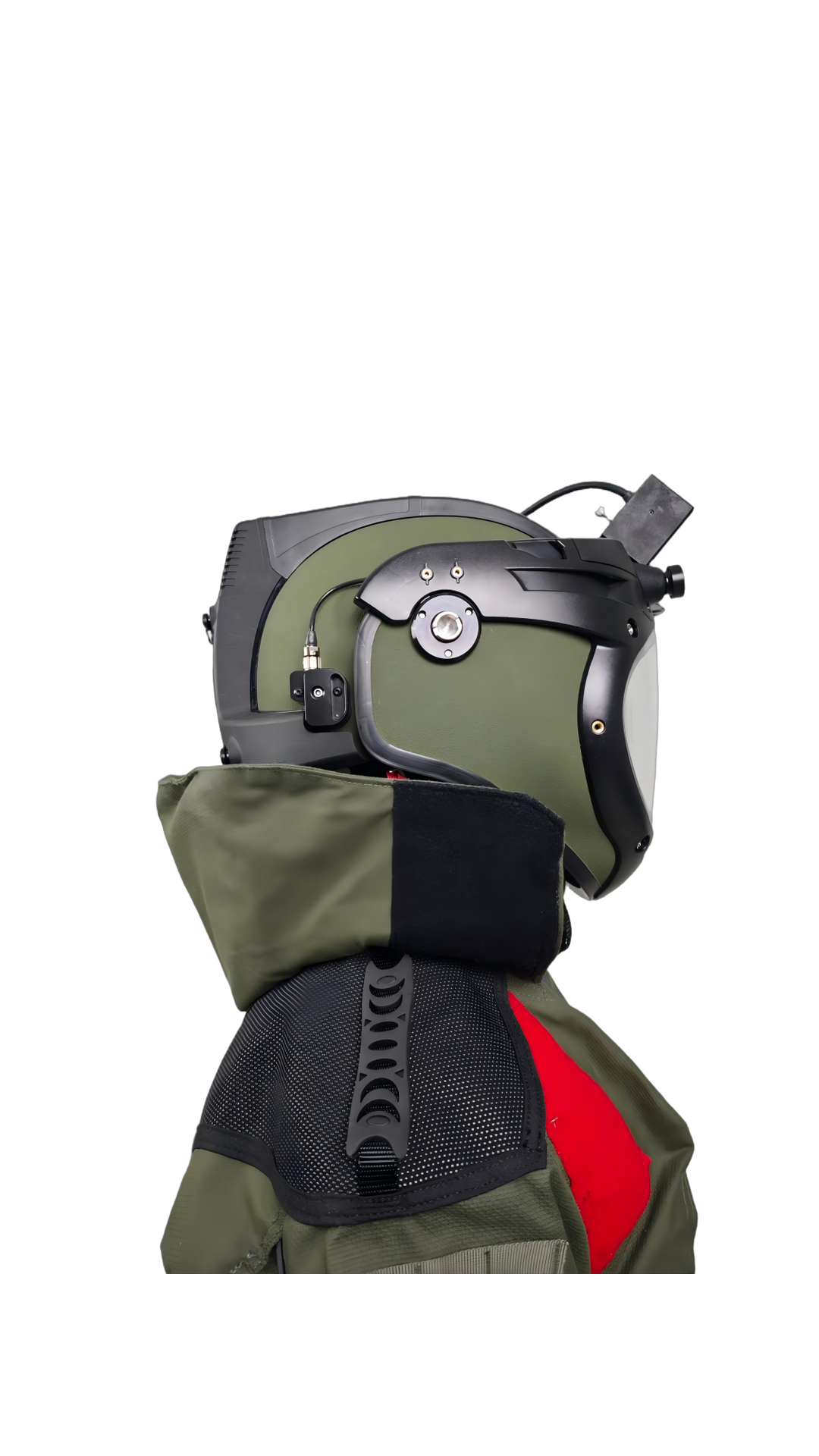

Seamless Integration with EOD Helmets
The camera seamlessly integrates into the explosive suit helmet, without interfering with the lifting of the helmet face mask
-

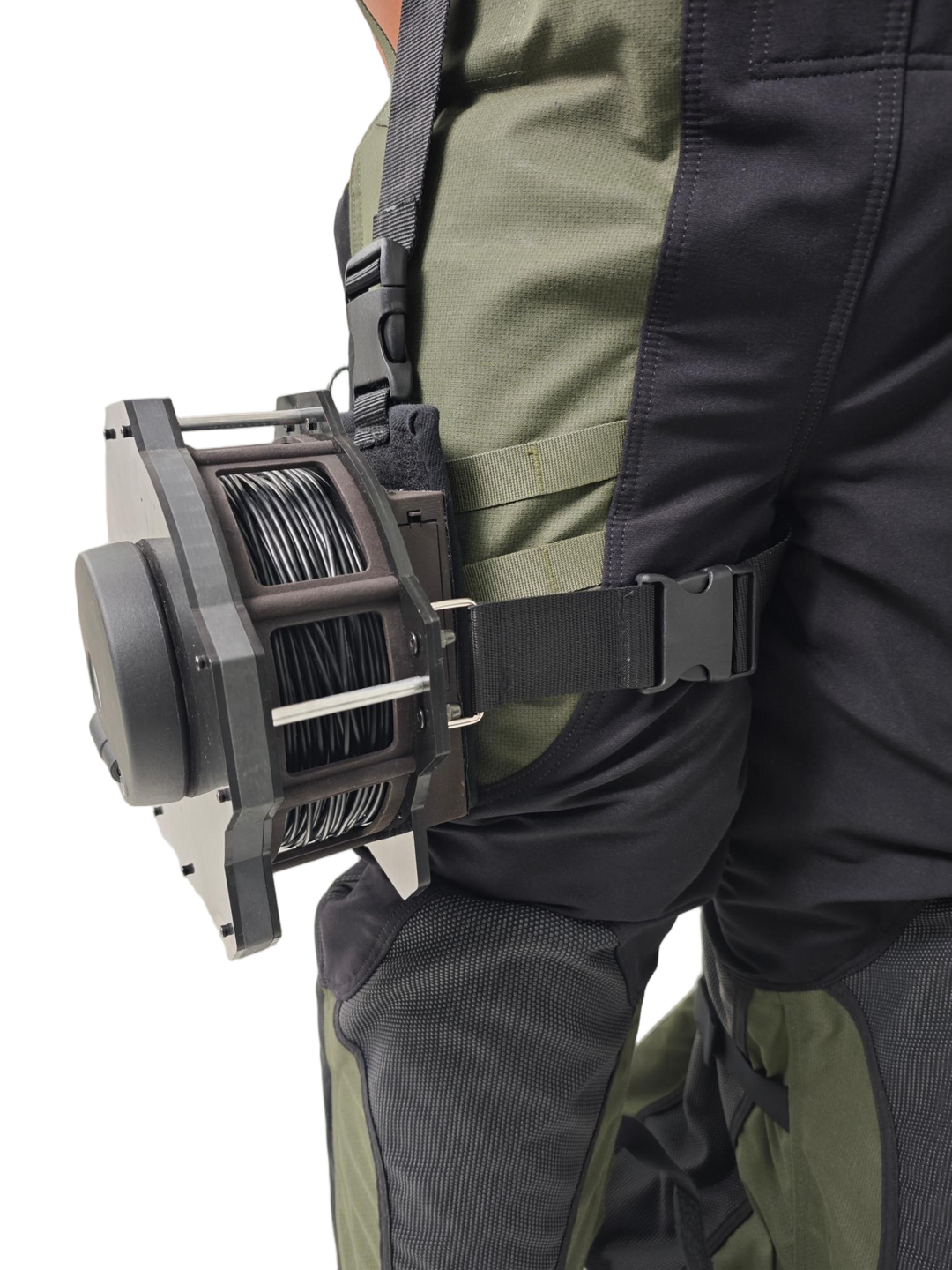

125m Long-range Cable with Fast Deployment System
Reliable wired transmission using a 125-meter cable reel, equipped with low-damping, automatic retraction for fast and tangle-free setup and collection. -
Tool-free, Field-repairable Cabling
Cable connectors require no tools. Damaged sections can be quickly cut and reconnected on site—ensuring minimal downtime. -
Dual Recording & Remote Monitoring
Built-in 128GB loop recording in the camera (>3h), plus remote recording and image capture capability at the command end via management software (>10h). -
Auxiliary Network Port for Expansion
Enables additional device networking and data transmission as needed.

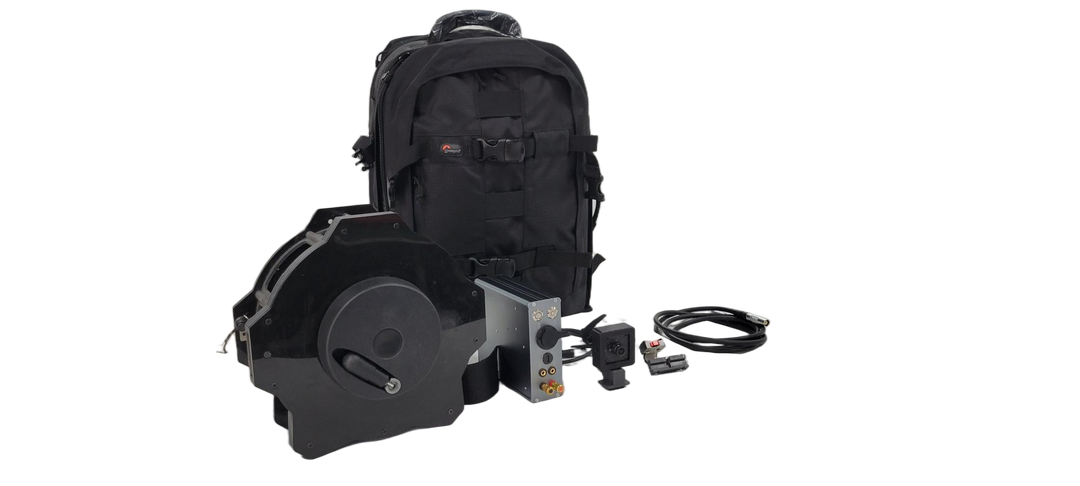

Packing List
-
1080p Helmet Camera ×1
-
Helmet Connector ×1
-
Quick On/Off Cable (1.8m) ×1
-
125m Cable Reel ×1
-
Terminal Box ×1
-
Terminal Box Cable (USB3 to USB Type-C) ×1
-
Headphones with Microphone ×1
-
Battery Charger ×1
-
Carrying Backpack ×1
| System overall | 360mm(H)*550mm(L)*310mm(W) Weight: 7kg |
| Wheel size | 240mm (H) * 248mm (L) * 150mm (W) (including hand crank) Weight: 3.2kg |
| Terminal box size | 45mm (H) * 122mm (L) * 140mm (W) Weight: 500g |
| Camera size | 67mm(H)*54mm(L)*47mm(W) Weight: 100g |
| Resolution | 1080P 25fps |
| Environment Requirement | Working temperature: -20 ℃~+70 ℃ Humidity:<90% RH |
| Working hours | ≥3 hours |
| Cable | 125m |
