TRACELINE PX3-N Portable DR System — Field NDT X-ray Inspection

Name: TRACELINE PX3-N Portable DR System — Field NDT X-ray Inspection
Brand: HDX International
Price: 50000.00 USD
Availability: InStock

Portable digital radiography (DR) system for field NDT inspection. Fully integrated X-ray source, detector panel, and control software — one vendor, one support call. Configured for weld inspection, CUI, castings, and structural steel.f

60m-1500m

Wireless range
100µm

Min Pixel Size
16-bit

A/D Conversion
IP65

Rugged Tablet

One Delivery. One Vendor. One Support Call.

X-ray generator
Digital detector panel
Control Module
50m cable reel
Tablet or Laptop
Accessories

(All Golden X-ray source options are compatible)

Additional panel options available

Enhanced wireless module forlonger transmission distance.
Supports 2.4GHz and 5GHz Wi-Fi

50m cable reel for wired operation.

MIL-STD rated, IP65 rugged tablet with high resolution, sunlight readable screen and PX3 Commander pre-installed

Security dongle for software authentication

DeWalt 20V batteries and charger

Wheeled Pelican case

The Assembly Problem

Generator from one vendor. Panel from another. Control box that's little more than a WiFi bridge. Software adapted from a legacy system.

The Field Reality

Works fine under ideal conditions, but becomes a troubleshooting nightmare under field conditions. What should be a two-minute setup turns into fifteen.

The Integration Solution

PX3 was designed as a field-deployed system from the start. The Control Module manages communication between generator, panel, and HMI.

Real Diagnostics

When something's wrong, you have actual diagnostic information — not blinking LEDs and guesswork. The system knows the status of every sub-component.

CAPABILITIES

Built for Inspectors, Not Adapted from Legacy Systems

FIELD-READY HMI
▸Touch target icons sized for work gloves
▸Pulse and delay settings accessible without menu diving
▸Preset recall (M1/M2/M3) for common configurations
▸Real-time battery monitoring across all components
▸One-tap wired/wireless switching
▸Fully rugged — extreme temperatures, wet conditions
▸High resolution, sunlight readable screen
IMAGE PROCESSING
▸Rotation, flip, zoom — the basics done right
▸Brightness and contrast with live preview
▸Pseudo-color for material differentiation
▸Local enhancement for crack detection
▸Measurement tools for sizing and documentation
▸Side-by-side comparison for baseline trending
ADVANCED CAPABILITIES
▸Dual-Energy imaging — standard, not an upsell
▸Material discrimination without sending samples to the lab
▸3D scanning mode built in for complex geometry

WHY PX3

What PX3 Offers

◆ Truly integrated system — Control Module, Commander software, and panels designed together
◆ Multiple panel resolution options for different inspection requirements
◆ Touch-optimized interface that works with PPE
◆ Dual-Energy and 3D modes as standard features
◆ 200m wireless range with dual-band WiFi — specified, not assumed
◆ NDT-focused manufacturer, not treating it as a sideline

SYSTEM CONFIGURATOR

Build Your System

Detector Panel

PP3543

350 × 430 mm · 139μm pixel

STANDARD

PP4343

350 × 430 mm · 139μm pixel

STANDARD

PP3543H

350 × 430 mm · 100μm pixel

HIGH·RES

PP4343H

350 × 430 mm · 100μm pixel

HIGH·RES

PP3543HN

350 × 430 mm · 100μm pixel

HIGH·RES

PP4343HN

350 × 430 mm · 100μm pixel

HIGH·RES

X-generator

XR150

Power: 150kV
Weight: 2.6kg

Aluminum,thin wall pipe

XR200

Power: 150kV
Weight: 3.9kg

Standard Weld Inspection

XRS3

Power: 270kV
Weight: 5.9kg

Heavy wall, casting

XRS4

Power: 370kV
Weight: 11kg

Thick sections, forgings

Where PX3 Gets Used

Pipeline, pressure vessels, structural steel. Touch interface works with welding gloves. Preset recall for every joint.
Weld Inspection

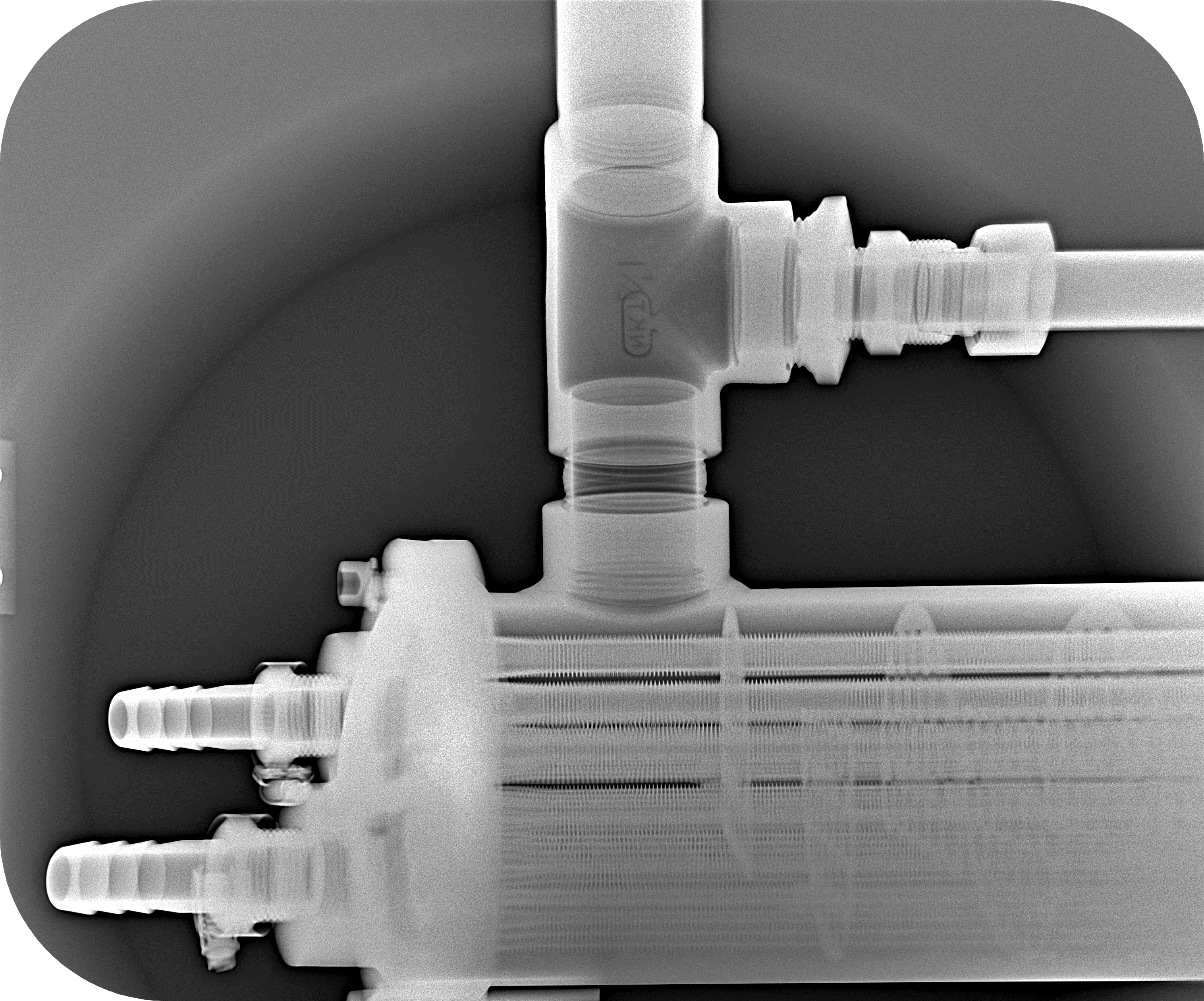

Corrosion Under Insulation
Subheading

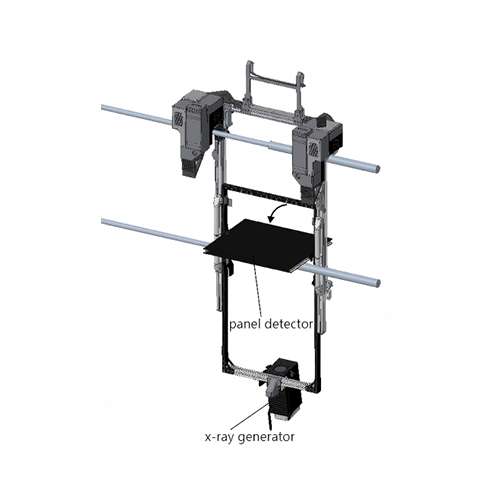

Tension clamp Inspection

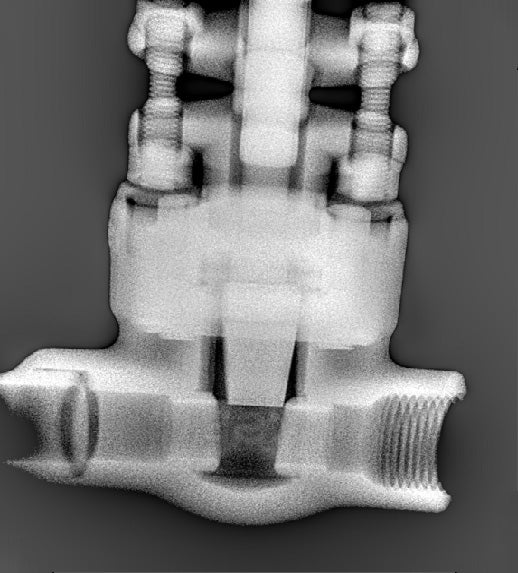

Castings & Forgings
Subheading
Tell your story
Subheading

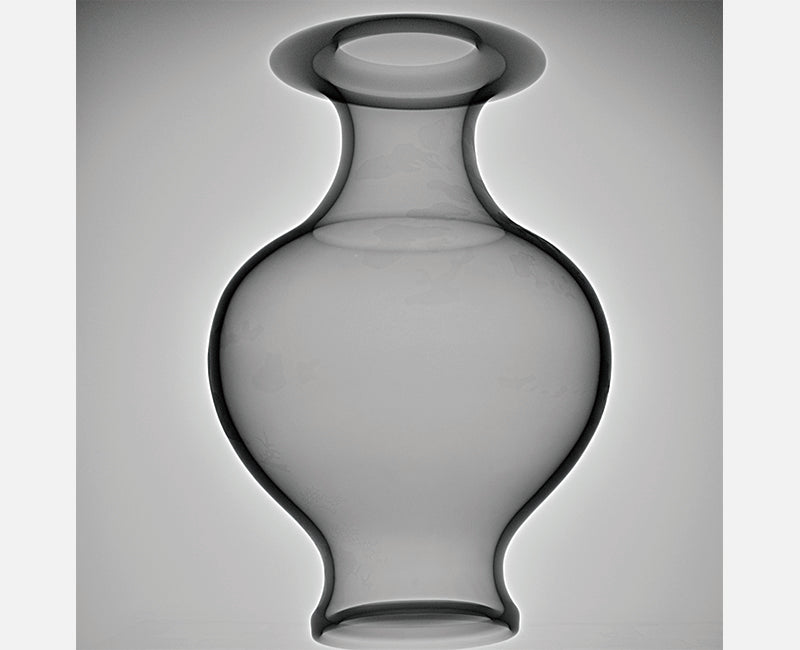

Art & Archaeology
