Prosaris OL2 Ultrasonic Leak Locator

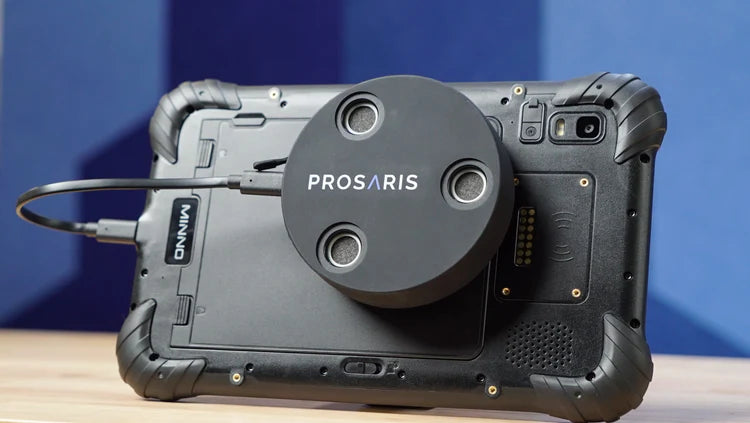

A smart ultrasonic sensor that transforms your phone or tablet into a visual ultrasonic leak detector in compressed air, gas and vacuum systems. The OL2 in conjunction with the Prosaris Leak Management App (Google Play) gives you all the features and tools you need to help you develop an in-house leak management program. Calculate Flow, energy loss, financial and environmental impacts in real-time.
Tax included. Shipping calculated at checkout.
Prosaris OL2 Ultrasonic Leak Locator
Prosaris OL2 Ultrasonic Leak Locator
Prosaris OL2 Ultrasonic Leak Locator
Prosaris OL2 Ultrasonic Leak Locator
Prosaris OL2 Ultrasonic Leak Locator

Features

Smart Device：OL2 connects with smart phones to capture leak data and stores it along with pictures and location tags for easy tracking and record keeping.

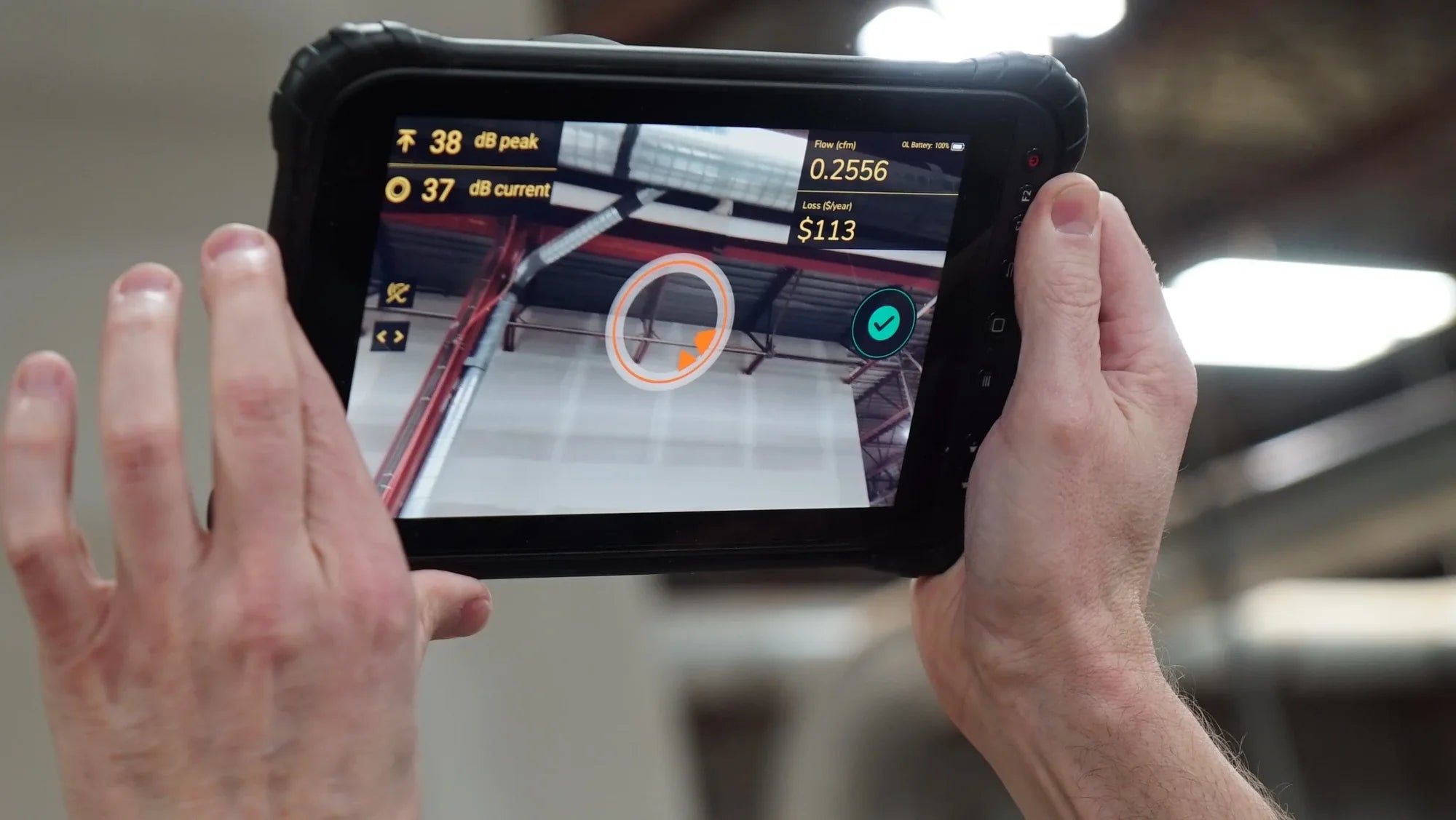

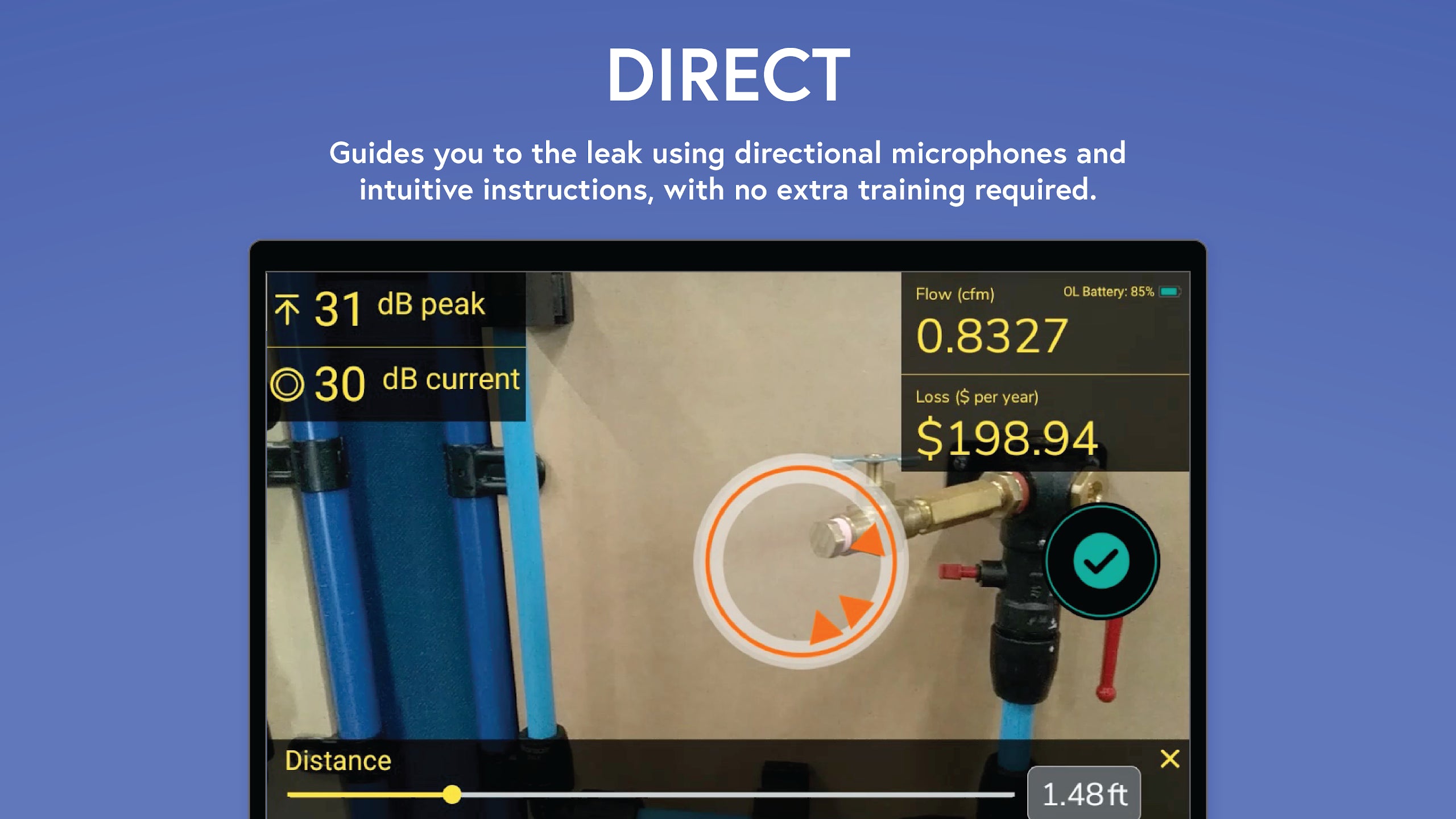

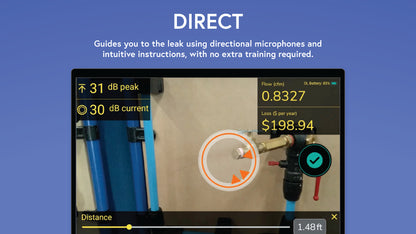

Visual Leak Locator：OL2 using the smartphone's camera can scan a wider industrial area, and directs you to the source of the leak.

Impact Calculator：Our smart algorithms accurately calculate flow, energy loss and quantify environmental and financial impacts as you locate leaks in real-time.

Compact and Light：OL2 weighs less than 400 gms or 1lb and fits into a handy case making it the Ultimate Smart Leak Locator.

No Training Required：No special training or trained professionals are needed to find leaks in your facility with the Prosaris OL2.

Improve Efficiency：Reduce spurious shutdowns caused by low system air-pressure, and high energy bills by employing Prosaris Smart Leak Management tools into regular workflow.

Affordable Leak Management：Prosaris OL2 is a smart ultrasonic tool that offer the benefits of expensive sonic visualizers at the cost of auditory leak detectors.

Specifications

Device-General
Dimensions (H x W x L) 22mm x 95mm x 95mm
Weight (including battery) 300g (0.7 pounds)
Operating temperature-20°C to +50°C (-4°F to +122°F)
Storage temperature-20°C to +50°C (-4°F to +122°F)
Charging temperature+4°C to +45°C (+39°F to +113°F)
Pollution degree2
Operating environmentWet location
Relative humidity10% to 95% non-condensing
Ingress protectionDesigned to IP54
Warranty1 year
Supported languagesEnglish
Sensors
Microphone24 digital MEMS microphones
Frequency Range10 kHz to 80 kHz
Operating distance0.3m to >50m (1ft to >164ft)
Field of view150° ± 5°
Acoustic Measurement
Measurement range0 dB to 110 dB (frequency independent)
dB gainAuto gain adjustment
Frequency selectionUser selection for lower and upper bound (FFT visible with display settings)
Sensitivity Auto sensitivity adjustment
Performance (detection) In low noise industrial environment>0.481 lpm at 310 kPag from 4.25m (>0.017cfm at 45 psig from 14')
>0.935 lpm at 690 kPag from 9.15m (>0.017cfm at 100 psig from 30')
For higher noise environments>0.481 lpm at 310 kPag from 3.20m (>0.017cfm at 45 psig from 10.5')
>0.935 lpm at 690 kPag from 5.65m (>0.017cfm at 100 psig from 18.5')
Connectivity
Connection typeCable-connected (USB-C)
Compatible MediumAndroid
Compatible withProsaris Leak Management App (available on Google Play)
Battery
TypeRechargeable Li-Pol
RatingRated 3.7Vdc, 1.5Ah, maximum specified charge and discharge temperature 45°C
Life8+ hours
Charging time6 hours
Charging methodUSB-C
