HDX International

TRACETECH™ FLS6 Forensic Light Source

This device integrates an LED light source with six selectable wavelength bands, allowing rapid one-click switching for multi-scene forensic applications. Its ergonomic design ensures ease of use and operational flexibility, making it suitable for fire/arson investigations, crime scene examinations, and traffic accident analysis. Engineered for field deployment, it delivers consistent and reliable performance across various investigative environments.
Regular price
Regular price
Sale price
Tax included. Shipping calculated at checkout.
TRACETECH™ FLS6  Forensic Light Source
TRACETECH™ FLS6  Forensic Light Source
TRACETECH™ FLS6  Forensic Light Source
TRACETECH™ FLS6  Forensic Light Source
TRACETECH™ FLS6  Forensic Light Source

This product features an LED light source with six integrated bands, providing the ability to easily switch between wavelengths with just one click. The ergonomically designed device offers flexibility and ease of operation, making it suitable for a variety of investigative applications such as fire/arson, crime scene, and traffic accident investigations. It meets the on-site requirements for all these situations, ensuring efficient and reliable forensic work.

Application

Crime Scene Investigation
Fire/Arson Investigation
Traffic Accident Investigation

 Highlighted Features

  • FLS6 Forensic Light Source boasts an integrated 6-bands light source, allowing for easy switching between different wavelengths with just one click..
  • The output intensity of each waveband can be adjusted independently, with a 5% increase/decrease per step.
  • Easy to read LCD display indicates light band setting and battery level
  •  Utilizes a precision optical lens for achieving achromaticity and minimal aberration delivering a large and uniform illumination area.

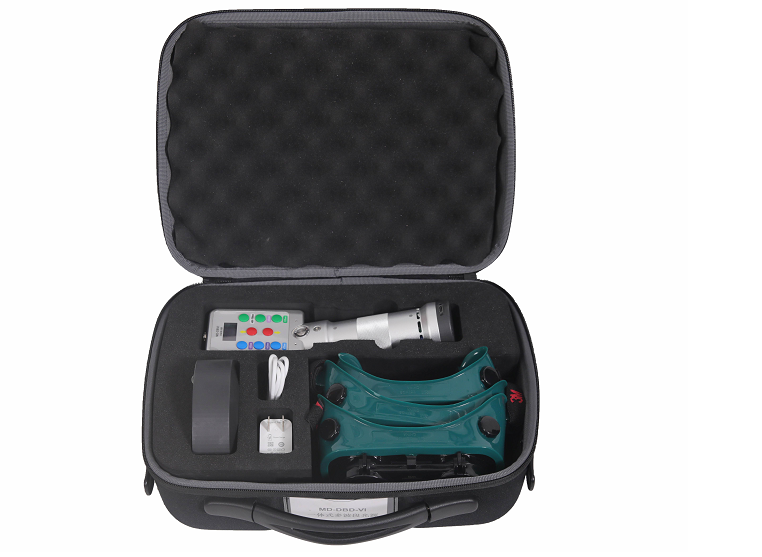

  • Includes special fluorescent viewing goggles for detection of latent evidence on objects with complex or dark backgrounds
  • Equipped with a safety switch for UV light source activation to protect against inadvertent UV radiation
  • This product facilitates both wired and wireless charging for batteries.
  • Ergonomic design allows for extended usage without experiencing fatigue.

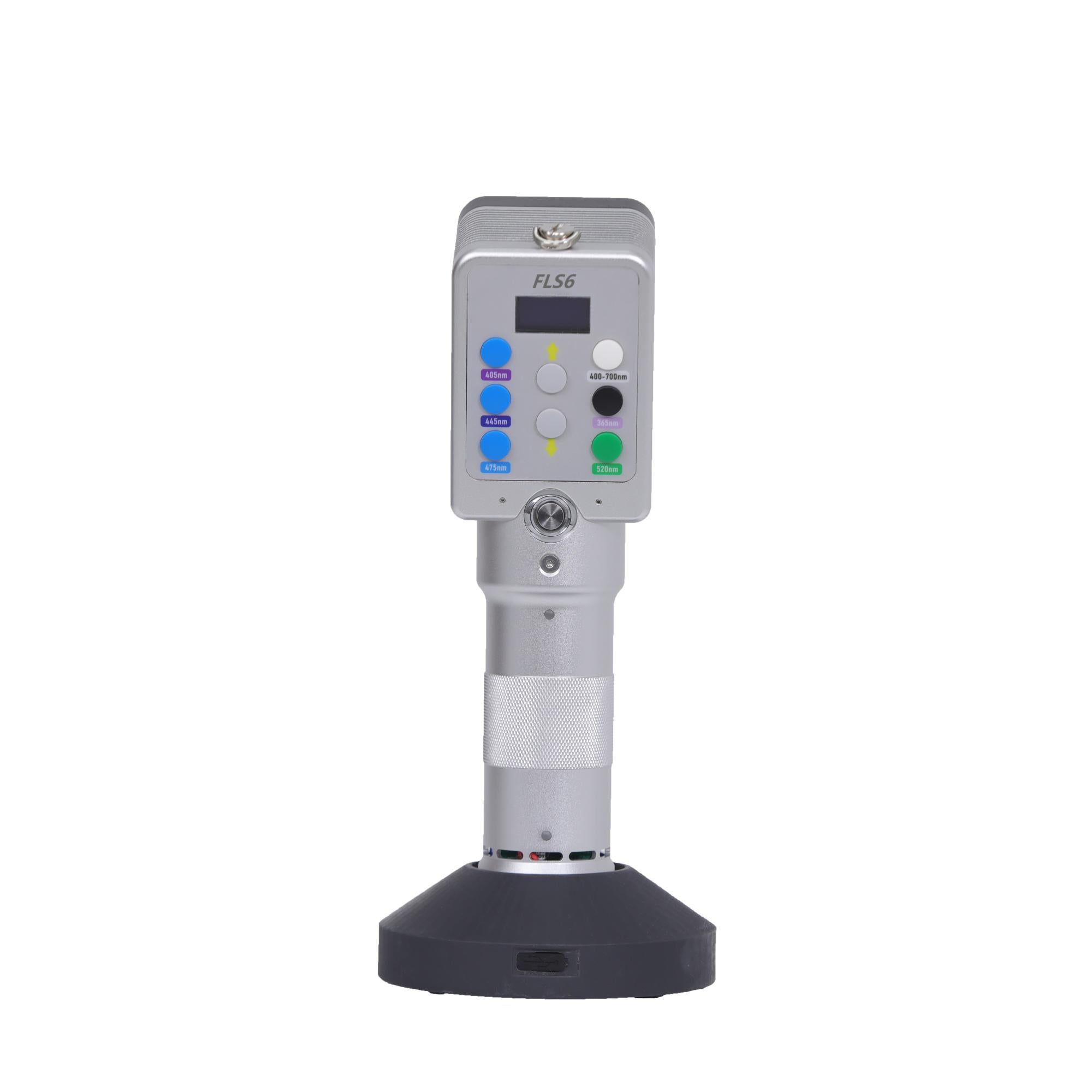

 Support Wireless and Cable Charging

Switch Button layout for Different Band




 Technical Data

Light Source

Wavelength

Half-wave Bandwidth

Viewing Goggles

White

400-700nm





Green

520nm

<10nm

CB580

Green/Blue

475nm

<10nm

CB550

Blue

445nm

<10nm

JB490

Violet

405nm

<10nm

 JB420

UV

365nm

<10nm

JB420


Dimension:  255 x 67 x 112 (Height x Width x Depth)
Handle diameter:  44mm
Weight: 1.2 KG

Specifications

Light SourceWavelength (nm)Half Power Bandwidth (nm) Viewing Goggles
White400-700
Green520<10CB580
Green/Blue475<10CB550
Blue445<10JB490
Violet405<10JB420
UV365<10JB420
Dimension255 x 67 x 112 (H x W x D)
Handle diameter44mm
Weight1.2 KG
