TRACETECH™ SFC 56 Portable Signature and Fingerprint Imaging Device
Couldn't load pickup availability
The SFC 56 is designed to capture handwriting signatures, fingerprints, stamps, and other forms of evidence. It also supports on-site post-imaging processing and analysis functions, including comparison, measurement, and annotation.
Key Functions for Evidence Imaging
One-button Capture with Different Lighting Options
SFC 56 supports one-button image capture and provides different lighting modes for evidence image acquisition.

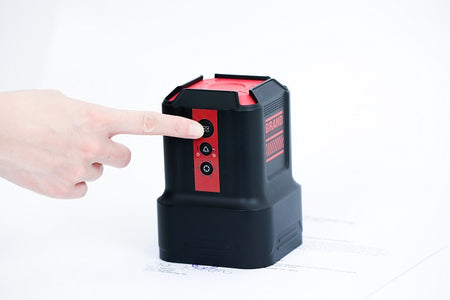

One-button Image Capture
One button press to capture the image.

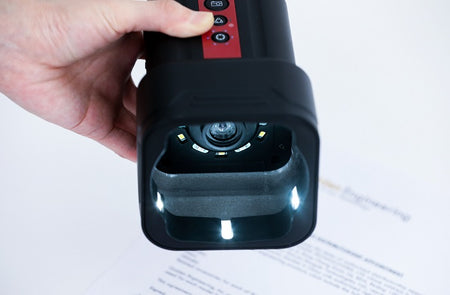

Top Ring LED Illumination
Top ring LED illumination assists in capturing sharp images.
Low-angle Ring LED Illumination
Low-angle ring LED lighting for photometric imaging applications.
Capture, Compare and Annotate Evidence Images
After image capture, SFC 56 supports practical processing functions for evidence image comparison, background removal, and fingerprint characteristic point marking.
Fingerprint Imaging on Object Surface
Imaging fingerprint on the bottle.
Image Comparison
Supports image comparison for evidence image review.
Removing Background
Supports removing background during image processing.
Fingerprint Characteristic Points Marking
Supports fingerprint characteristic points marking.
Product Demonstration
Technical Specifications
| Live Image Resolution | 10M pixels |
|---|---|
| Captured Image Resolution | 1400 dpi |
| Field of View | 56 × 56 mm |
| Captured Image Format | TIFF, JPEG, JPEG2000 |
| Image Transfer | Wi-Fi with mobile phone or USB 3.0 port with computer |

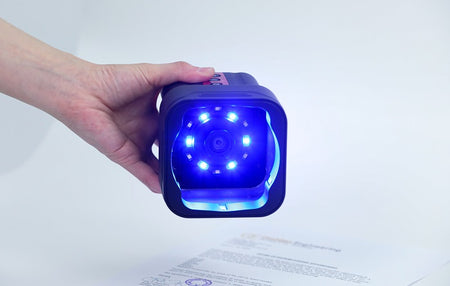

| Light Source | 2-layer white light source and 450 nm light source |
| Power Supply | 2 × 18650 batteries, 3.7 V, 3400 mAh |
| Dimensions | 90 × 90 × 130 mm |
| Weight | 390 g |
